034Motorsport Suspension Lift Kit for Audi & Volkswagen MQB / MQB Evo
034Motorsport Suspension Lift Kit for Audi & Volkswagen MQB / MQB Evo
648,83 € tax incl.
- Order today
- Preparation at the manufacturer
- Delivery Wed 2 Dec
034-404-Z002 - 034Motorsport Suspension Lift Kit for Audi & Volkswagen MQB / MQB Evo
The 034Motorsport suspension lift kit 034-404-Z002 is designed for Audi and Volkswagen MQB / MQB Evo owners who wish to increase their vehicle's ground clearance without sacrificing comfort or original geometry. Ideal for overland use, trails, snow, or simply to stop scraping on speed bumps, this bolt-on lift kit offers a clean, reversible solution compatible with a wide range of platforms: A3, S3, RS3, TT, Golf, GTI, Golf R, Alltrack, and more.
Main Features of the 034Motorsport Lift Kit
- Front Lift: +34 mm (approximately 1.3") of ride height.
- Rear Lift: +13 mm (approximately 0.6") for a leveled look without exaggerated rake.

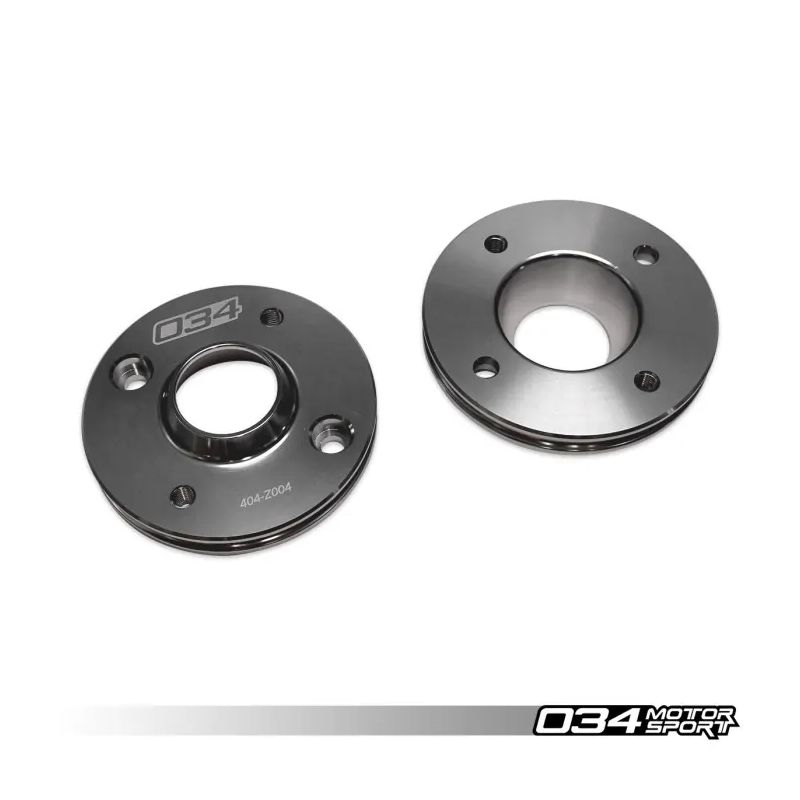

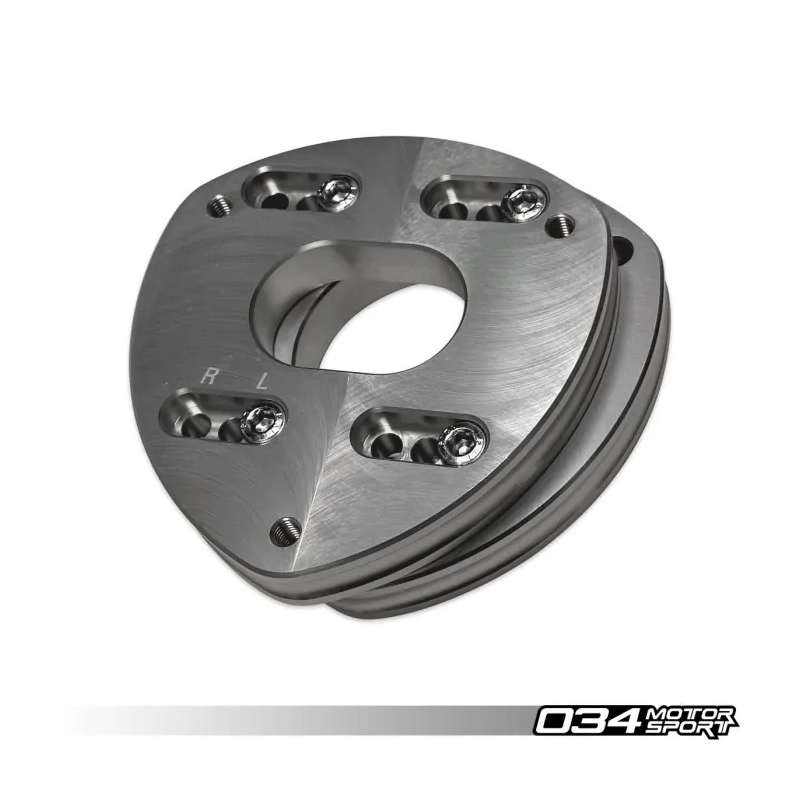

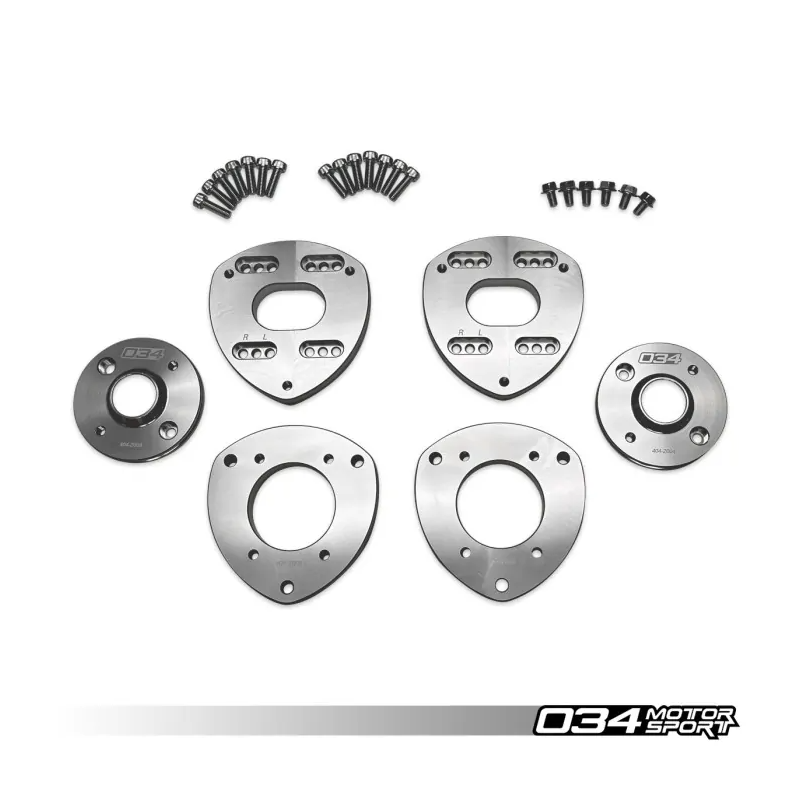

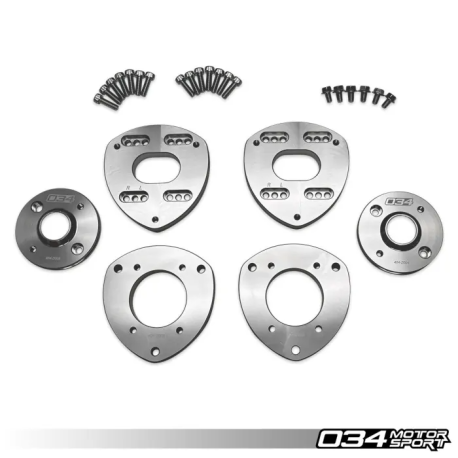

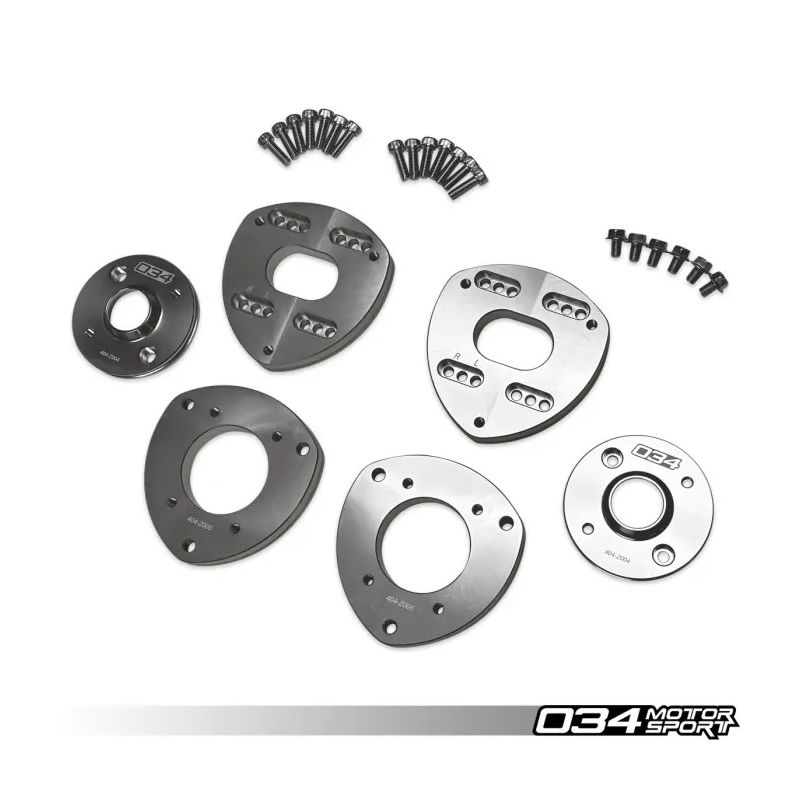

- Material: Spacers machined from 6061-T6 aluminum, robust, lightweight, and resistant to settling over time.
- Low to Zero NVH: No significant increase in noise, vibration, or harshness in the cabin when other suspension components are in good condition.
- 100% Bolt-on installation, fully reversible, with no cutting or welding required on the chassis.
- Integrated Camber and Caster correction to maintain factory geometry specifications after lifting.
- “Camber only” option for wide tire setups or large diameters to limit the risk of rubbing on fender liners.
- Rear spring centering cups and reuse of original spring isolators for a clean fitment.
Why Install a 034Motorsport Lift Kit?
- Increased ground clearance for mixed road/trail use, degraded roads, parking access, or aggressive speed bumps.
- Better protection for rocker panels, bumpers, and exhaust systems on vehicles that are factory-lowered (Alltrack, Golf, etc.).
- Controlled lift by limiting common negative effects (positive camber, modified caster, tire-to-fender contact) thanks to the machined offsets in the plates.
- Suitable for both adventurers/overlanders and drivers simply looking for a more versatile vehicle for daily use.
Vehicle Compatibility – MQB & MQB Evo Platforms
The 034Motorsport lift kit 034-404-Z002 was initially developed for the Volkswagen Golf Alltrack, but is also compatible with many Audi and Volkswagen models based on MQB and MQB Evo:
- Audi A3 8V (2015–2016) – 1.8 TFSI & 2.0 TDI engines.
- Audi A3 8V / 8V.5 (2015–2020) – 2.0 TFSI engine.
- Audi S3 8V / 8V.5 (2015–2020) – 2.0 TFSI engine.
- Audi RS3 8V.5 (2017–2020) – 2.5 TFSI EVO engine.
- Audi TT / TTS 8S (2016–2020) – 2.0T Gen 3.
- Audi TTRS 8S (2018–2020) – 2.5 TFSI EVO.
- Volkswagen Golf Mk7 / Mk7.5 (2015–2020) – 1.8T Gen3 and 2.0 TDI.
- Volkswagen GTI Mk7 / Mk7.5 (2015–2021) – 2.0T Gen3.
- Volkswagen Golf R Mk7 / Mk7.5 (2015–2019) – 2.0 TSI Gen3.
- Volkswagen E-Golf Mk7 (2015–2020).
- Volkswagen GLI Mk7 (2018–present) – 2.0 TSI Gen3.
- Volkswagen Golf SportWagen Mk7 / Mk7.5 (2015–2020) – 1.8T Gen3.
- Volkswagen Golf Alltrack Mk7 / Mk7.5 (2015–2020) – 1.8T Gen3.
When installing on a model other than the Golf Alltrack, it is recommended to verify axle travel and suspension kinematics after installation, as well as to perform a complete wheel alignment.
Installation Notes and Recommendations
- Estimated installation time: approximately 4 to 5 hours with appropriate tools.
- On some models, it may be necessary to remove the driveshaft or axle to extract the strut assemblies (axle bolt replacement recommended: WHT 005 437 – M16x1.5x70).
- On 2018+ Alltrack / Sportwagen 4Motion, some vehicles have a shorter driver-side axle which may generate noise after installation; using the longer axle 5QM 407 271 E is then recommended.
- For large tire setups (≈ 26.5" diameter or more), use the “camber only” setting to limit the risk of rubbing on front and rear fender liners.
Product Reference: 034-404-Z002
Brand: 034Motorsport
Product Type: Aluminum suspension lift kit
Platforms: Audi & Volkswagen MQB / MQB Evo (see compatibility list above)
Lift Height: +34 mm front / +13 mm rear
Compatible vehicles (92)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 2.0 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 2.0 TFSI (220 cv) | essence | - | 220 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 2.0 TFSI (310 cv) | essence | - | 310 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 2.0 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 2.0 TFSI (280 cv) | essence | - | 280 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 2.0 TFSI (300 cv) | essence | - | 300 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 2.0 TFSI (310 cv) | essence | - | 310 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 35 TFSI (150 cv) | essence | - | 150 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 40 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 180 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 2.0 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 2.0 TFSI (220 cv) | essence | - | 220 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 30 TFSI (115 cv) | essence | - | 115 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 35 TFSI (150 cv) | essence | - | 150 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | 40 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | RS3 quattro (400 cv) | essence | - | 400 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | RS3 quattro (400 cv) FAP | essence | - | 400 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 2.0 45 TFSI (220 cv) | essence | - | 220 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 2.0 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 2.0 TFSI (310 cv) | essence | - | 310 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 30 g-tron (131 cv) | essence | - | 131 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 30 TFSI (116 cv) | essence | - | 116 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 35 TFSI (150 cv) | essence | - | 150 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 40 TFSI (190 cv) | essence | - | 190 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | RS3 quattro (367 cv) | essence | - | 367 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | RS3 quattro (400 cv) | essence | - | 400 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | RS3 quattro (400 cv) FAP | essence | - | 400 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TFSI (230 cv) | essence | - | 230 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TFSI (S) (306 cv) | essence | - | 306 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TFSI (S) EU6d (320 cv) | essence | - | 320 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TTS quattro (310 cv) | essence | - | 310 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (286 cv) | essence | - | 286 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (292 cv) | essence | - | 292 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TTS TSI quattro (306 cv) | essence | - | 306 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.5 RS TFSI quattro (400 cv) | essence | - | 400 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 40 TFSI (197 cv) | essence | - | 197 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 45 TFSI (245 cv) | essence | - | 245 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | TTS TFSI quattro (320 cv) | essence | - | 320 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TFSI (230 cv) | essence | - | 230 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TFSI (S) (306 cv) | essence | - | 306 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TFSI (S) EU6d (320 cv) | essence | - | 320 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (286 cv) | essence | - | 286 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (306 cv) | essence | - | 306 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (310 cv) | essence | - | 310 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.5 RS TFSI quattro (400 cv) | essence | - | 400 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.5 RS TFSI quattro (400 cv) FAP | essence | - | 400 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 40 TFSI (197 cv) | essence | - | 197 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 45 TFSI (245 cv) | essence | - | 245 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | TTS TFSI quattro (320 cv) | essence | - | 320 hp | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Golf Alltrack VII Variant (BA5, BV5) (12/2014 - 08/2020) | 1.8 TSI 4motion (180 cv) | essence | - | 180 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 1.8 TSI (170 cv) | essence | - | 170 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 1.8 TSI / TFSI (180 cv) | essence | - | 180 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 1.8 TSI / TFSI (180 cv) 4motion | essence | - | 180 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (210 cv) | essence | - | 210 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (220 cv) | essence | - | 220 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (230 cv) | essence | - | 230 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (245 cv) | essence | - | 245 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI Clubsport (265 cv) | essence | - | 265 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI Clubsport S (310 cv) | essence | - | 310 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI TCR (290 cv) | essence | - | 290 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 360S 4motion (360 cv) | essence | - | 360 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (280 cv) | essence | - | 280 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (290 cv) | essence | - | 290 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (292 cv) | essence | - | 292 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (300 cv) | essence | - | 300 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (300 cv) FAP Facelift | essence | - | 300 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (310 cv) | essence | - | 310 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 TSI Performance (245 cv) | essence | - | 245 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 TSI Performance (245 cv) 4motion | essence | - | 245 hp | - |
| Golf VII Van (5G1, BQ1) (08/2012 - 08/2020) | 2.0 GTI (220 cv) | essence | - | 220 hp | - |
| Golf VII Van (5G1, BQ1) (08/2012 - 08/2020) | 2.0 GTI (230 cv) | essence | - | 230 hp | - |
| Golf VII Variant (BA5, BV5) (04/2013 - 03/2021) | 2.0 R 360S 4motion (360 cv) | essence | - | 360 hp | - |
| Golf VII Variant (BA5, BV5) (04/2013 - 03/2021) | 2.0 R 4motion (280 cv) | essence | - | 280 hp | - |
| Golf VII Variant (BA5, BV5) (04/2013 - 03/2021) | 2.0 R 4motion (290 cv) | essence | - | 290 hp | - |
| Golf VII Variant (BA5, BV5) (04/2013 - 03/2021) | 2.0 R 4motion (300 cv) | essence | - | 300 hp | - |
| Golf VII Variant (BA5, BV5) (04/2013 - 03/2021) | 2.0 R 4motion (310 cv) | essence | - | 310 hp | - |
| Jetta VII (BU3, BU4, BU5) (12/2017 - Aujourd'hui) | 2.0 GLI (231 cv) | essence | - | 231 hp | - |
