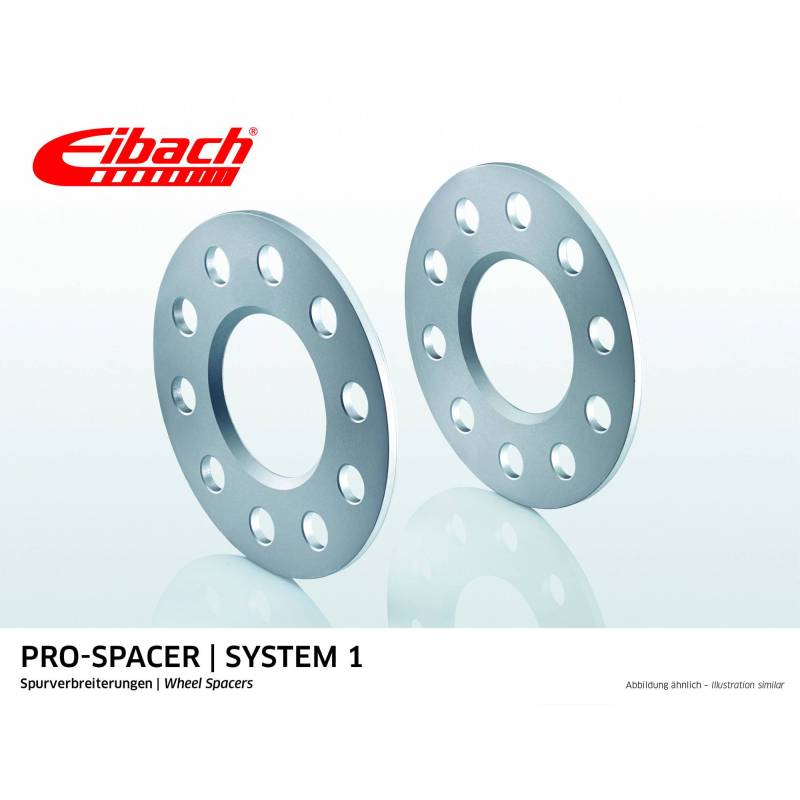

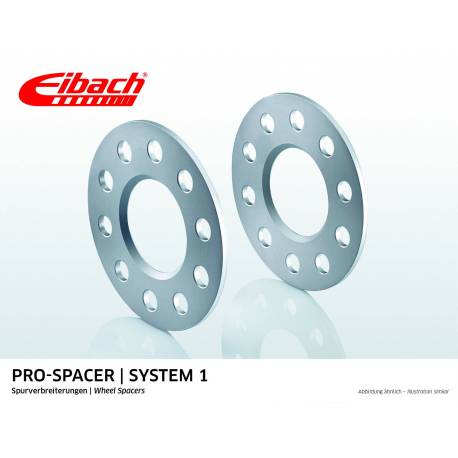

Track thicknesses Eibach 120x5 in 5 mm
90,78 € tax incl.
106,80 €
-15%
- Order today
- Preparation at the manufacturer
- Delivery Mon 30 Nov
Sold in pairs.
Thickness in mm (the hold): 5 mm
total width by axles: 10 mm
Distance between centers: 120x5
Moyeu diameter (Aisage): 65 mm
Fastening thread: M14x1.5
Colori des cales : Aluminium
Screws not included
Without rim centerer
Fixing system: Simple bolts
Screw mounting system
Type of system Eibach 1:
kit reference : S90-1-05-027
Example of compatible vehicles:
VW TOUAREG (7LA, 7L6, 7L7) 10.02 - 05.10
VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 04.03 -
VW Transporter T5 BUS (7HB, 7HJ, 7EB, 7EJ, 7EF) 04.03 -
VW Transporter T5 KASTEN (7HA, 7H, 7EA, 7EH) / Transporter T5 BOX (7HA, 7H, 7EA, 7EH) 04.03 -
VW Transporter T5 PRITSCHE/FAHRGESTELL (7JD, 7JE, 7JL, 7JY, 7JZ) / Transporter T4 PLATFORM/CHASSIS (7JD, 7JE, 7JL, 7JY, 7JZ) 04.03 -
VW MULTIVAN T6 (SGF, SGM, SGN) 04.15 -
VW Transporter T6 BUS (SGB, SGG, SGJ) 04.15 -
VW Transporter T6 KASTEN (SGA, GHS) / Transporter T6 BOX (SGA, GHS) 04.15 -
VW Transporter T6 PRITSCHE/FAHRGESTELL (SFD, SFE, SFL, SFZ) / Transporter T6 PLATFORM/CHASSIS (SFD, SFE, SFL, SFZ) 04.15 -
A question about compatibility, fixing your hold? Need to find the right visserie? Contact us
If you are looking for the compatibility of a shim, a set of Eibach suspension springs, or even to find a reference for your vehicle, I invite you to go to the Eibach search engine. Isolate the reference which is appropriate to you and communicate it to us, we will help you to find it on our Internet site: Eibach Online Catalogue.
| Materials: | Aluminum |
| Thickness: | 5mm |
| Colors: | Aluminum |
| Product Range : | Wheels |
| Wheel | Spacers |
| Wheel options | Single-Bolt |
Compatible vehicles (49)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 2.5 R5 TDI (174 cv) | diesel | - | 174 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 3.0 V6 TDI (225 cv) | diesel | - | 224 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 3.0 V6 TDI (240 cv) | diesel | - | 240 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 3.2 V6 (220 cv) | essence | - | 220 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 3.6 V6 FSI (280 cv) | essence | - | 280 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 4.2 V8 (310 cv) | essence | - | 310 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 4.2 V8 FSI (350 cv) | essence | - | 350 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 5.0 R50 TDI (350 cv) | diesel | - | 350 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 5.0 V10 TDI (313 cv) | diesel | - | 313 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | 6.0 W12 (450 cv) | essence | - | 450 hp | - |
| Touareg I SUV (7L6, 7L7, 7LA) (10/2002 - 05/2010) | Autres Motorisations | - | - | - | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 1.9 TD (102 cv) | - | - | 102 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 1.9 TD (105 cv) | - | - | 105 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 1.9 TD (85 cv) | - | - | 85 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.0 BiTDI (180 cv) | diesel | - | 180 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.0 TDI (102 cv) | diesel | - | 102 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.0 TDI (140 cv) | diesel | - | 140 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.0 TDI (84 cv) | diesel | - | 84 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.5 TDI (130 cv) | diesel | - | 130 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.5 TDI (163 cv) | diesel | - | 163 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 2.5 TDI (174 cv) | diesel | - | 174 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | 3.2 V6 4motion (235 cv) | essence | - | 235 hp | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | Autres Motorisations | - | - | - | - |
| Transporter T5 Autobus/Autocar (7EB, 7EJ, 7HB, 7HJ) (04/2003 - 08/2015) | VR6 3.2 (235 cv) | essence | - | 235 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.0 BiTDI (180 cv) | diesel | - | 180 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.0 TDI (102 cv) | diesel | - | 102 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.0 TDI (140 cv) | diesel | - | 140 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.0 TDI (84 cv) | diesel | - | 84 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.5 TDI (130 cv) | diesel | - | 130 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | 2.5 TDI (174 cv) | diesel | - | 174 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | Autres Motorisations | - | - | - | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | VR6 3.2 (235 cv) | essence | - | 235 hp | - |
| Transporter T5 Camion Plate-Forme/Châssis (7FD, 7FE, 7FL, 7FY, 7FZ, 7JD, 7JE, 7JL, 7JY, 7JZ) (04/2003 - 08/2015) | VR6 3.2 4motion (235 cv) | essence | - | 235 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.0 BiTDI (180 cv) | diesel | - | 180 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.0 TDI (102 cv) | diesel | - | 102 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.0 TDI (140 cv) | diesel | - | 140 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.0 TDI (84 cv) | diesel | - | 84 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.5 TDI (130 cv) | diesel | - | 130 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | 2.5 TDI (174 cv) | diesel | - | 174 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | Autres Motorisations | - | - | - | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | VR6 3.2 (235 cv) | essence | - | 235 hp | - |
| Transporter T5 Fourgon (7EA, 7EH, 7HA, 7HH) (04/2003 - 08/2015) | VR6 3.2 4motion (235 cv) | essence | - | 235 hp | - |
| Transporter T6 Camion Plate-Forme/Châssis (SFD, SFE, SFL, SFZ, SJD, SJE, SJL, SJZ) (04/2015 - 08/2024) | 2.0 TDI (180 cv) | diesel | - | 180 hp | - |
| Transporter T6 Camion Plate-Forme/Châssis (SFD, SFE, SFL, SFZ, SJD, SJE, SJL, SJZ) (04/2015 - 08/2024) | 2.0 TDI (204 cv) | diesel | - | 204 hp | - |
| Transporter T6 Camion Plate-Forme/Châssis (SFD, SFE, SFL, SFZ, SJD, SJE, SJL, SJZ) (04/2015 - 08/2024) | Autres Motorisations | - | - | - | - |
| Transporter T6 Fourgon (SGA, SGH, SHA, SHH) (04/2015 - 08/2024) | 2.0 TDI (180 cv) | diesel | - | 180 hp | - |
| Transporter T6 Fourgon (SGA, SGH, SHA, SHH) (04/2015 - 08/2024) | 2.0 TDI (204 cv) | diesel | - | 204 hp | - |
| Transporter T6 Fourgon (SGA, SGH, SHA, SHH) (04/2015 - 08/2024) | 2.0 TSI (204 cv) | essence | - | 204 hp | - |
| Transporter T6 Fourgon (SGA, SGH, SHA, SHH) (04/2015 - 08/2024) | Autres Motorisations | - | - | - | - |
