Coilover Kit STREET-R3 Dynaparts for BMW 3 Series years 98-05

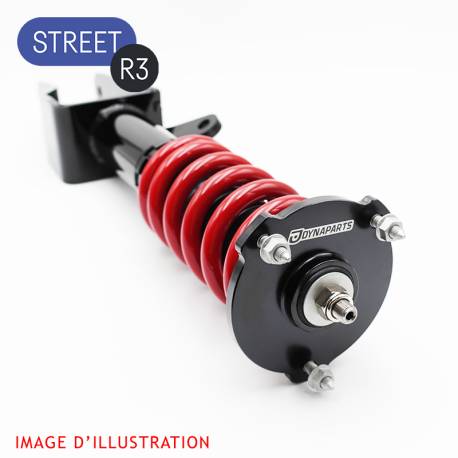

Dynaparts Street R3 coilover kit for the BMW Série 3 E46 (98-05). 3-way damping adjustment, spring rates 8 kg/mm front / 7 kg/mm rear - versatile road and track day use.

Dynaparts

DP-SPS-COILOVERS-BMW-217

3 399,98 € tax incl.

?
Estimated restock lead time
  1. Order today
  2. Restock supplier order
  3. Delivery Wed 25 Nov
Estimated delivery to you on 25/11/2026
This lead time is an estimate and may change due to circumstances beyond our control

Add to Compare

This product is eligible for FREE SHIPPING!*
With this product: 3 399,98 € Free delivery unlocked

Dynaparts Street R3 coilover kit for the BMW Série 3 E46 (98-05). Height adjustment independent from damping, built for versatile road and circuit use.

Technical specifications

  • Damping adjustment: 3-way independent - 33 positions per way
  • Design: Standard
  • Front top mount: Pillow ball top mount with aluminium camber plate
  • Rear top mount: Fixed aluminium top mount
  • Front spring rate: 8 kg/mm
  • Rear spring rate: 7 kg/mm
  • Separate oil reservoir: Yes
  • Use: Versatile - road and competition

Vehicle compatibility

  • Model: BMW Série 3 E46
  • Years: 98-05

Important notes:

  • Véhicules 2 roues motrices. Amortisseurs et ressorts arrières montés ensembles, ce qui nécessite de découper un passe dans la tôle.

Dynaparts ranges: what's the difference between Street R1, R2, R3 and Track R2, R3?

The Dynaparts coilover range comes in five levels, from the versatile daily/track kit to the full racing kit designed exclusively for circuit use.

Street R1 (1-way)

Damping adjustment on 1 way: compression and rebound adjusted simultaneously via a single knob, 33 positions. Designed for daily driving and occasional track days. Standard design, separate oil reservoir. Top mounts included depending on application.

Street R2 (2-way)

Independent 2-way adjustment: compression and rebound tuned separately to fine-tune behaviour under braking, in corners and on corner exit. 33 positions per way. Designed for daily driving and track use. Standard design, separate oil reservoir.

Street R3 (3-way)

Independent 3-way adjustment: rebound, low-speed compression and high-speed compression. 33 positions per way. Maximum precision for fast chicanes and varied surfaces. Designed for daily driving and competition. Standard design, separate oil reservoir.

Track R2 (2-way, inverted design)

Inverted monotube design, separate oil reservoir and additional reservoir. Independent 2-way adjustment, 33 positions per way. Circuit use only. High spring rates to handle track loads.

Track R3 (3-way, inverted design)

Inverted monotube design, dual reservoir, full 3-way adjustment, 33 positions per way. Total control over suspension kinematics. Circuit use only. Maximum precision for serious lap timing.

Compatible vehicles (86)

BMW (86) ▼
ModelEngineFuelDisplacementPowerYears
Série 3 (E46) (12/1997 - 05/2005) 316 i (105 cv)essence-105 hp-
Série 3 (E46) (12/1997 - 05/2005) 318 d (116 cv)diesel-116 hp-
Série 3 (E46) (12/1997 - 05/2005) 318 i (118 cv)essence-118 hp-
Série 3 (E46) (12/1997 - 05/2005) 320 d (136 cv)diesel-136 hp-
Série 3 (E46) (12/1997 - 05/2005) 320 d (150 cv)diesel-150 hp-
Série 3 (E46) (12/1997 - 05/2005) 320 i (150 cv)essence-150 hp-
Série 3 (E46) (12/1997 - 05/2005) 320 i (170 cv)essence-170 hp-
Série 3 (E46) (12/1997 - 05/2005) 323 i (170 cv)essence-170 hp-
Série 3 (E46) (12/1997 - 05/2005) 325 i (192 cv)essence-192 hp-
Série 3 (E46) (12/1997 - 05/2005) 325 xi (192 cv)essence-192 hp-
Série 3 (E46) (12/1997 - 05/2005) 328 i (193 cv)essence-193 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 d (184 cv)diesel-184 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 d (204 cv)diesel-204 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 i (231 cv)essence-231 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 xd (184 cv)diesel-184 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 xd (204 cv)diesel-204 hp-
Série 3 (E46) (12/1997 - 05/2005) 330 xi (231 cv)essence-231 hp-
Série 3 (E46) (12/1997 - 05/2005) Autres Motorisations----
Série 3 (E46) (12/1997 - 05/2005) M3 3.2 (343 cv)--343 hp-
Série 3 (E46) (12/1997 - 05/2005) M3 3.2 US (333 cv)--333 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 316 Ti (105 cv)essence-105 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 318 i/Ci 1.9 (118 cv)--118 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 318 TD (115 cv)diesel-116 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 320 i 2.0 (150 cv)--150 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 320 i/Ci 2.2 (170 cv)--170 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 320 TD (136 cv)diesel-136 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 320 TD (150 cv)diesel-150 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 323 i/Ci 2.5 (170 cv)--170 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 325 Ti (192 cv)essence-192 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 328 i/Ci 2.8 (193 cv)--193 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) 330 i/xDrive 3.0 (231 cv)--231 hp-
Série 3 Compact (E46) (03/2001 - 02/2005) Autres Motorisations----
Série 3 Coupé (E46) (12/1998 - 07/2006) 316 Ci (105 cv)essence-105 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 318 Ci (118 cv)essence-118 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 318 d/TD 2.0 (116 cv)--116 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 320 CD (150 cv)diesel-150 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 320 Ci (150 cv)essence-150 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 320 Ci (170 cv)essence-170 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 320 d 2.0 (136 cv)diesel-136 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 323 Ci (170 cv)essence-170 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 325 Ci (192 cv)essence-192 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 328 Ci (193 cv)essence-193 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 330 CD (204 cv)diesel-204 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 330 Ci (231 cv)essence-231 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 330 d/xd/CD 3.0 (184 cv)--184 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) 330 xi (231 cv)essence-231 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) Autres Motorisations----
Série 3 Coupé (E46) (12/1998 - 07/2006) M3 (343 cv)essence-343 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) M3 3.2 US (333 cv)--333 hp-
Série 3 Coupé (E46) (12/1998 - 07/2006) M3 CSL (360 cv)essence-360 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 316 i 1.9 (105 cv)--105 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 318 d/TD 2.0 (116 cv)--116 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 318 i/Ci 1.9 (118 cv)--118 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 320 CD (150 cv)diesel-150 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 320 Ci (170 cv)essence-170 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 320 d 2.0 (136 cv)diesel-136 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 320 i 2.0 (150 cv)--150 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 323 Ci (170 cv)essence-170 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 325 Ci (192 cv)essence-192 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 328 i/Ci 2.8 (193 cv)--193 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 330 CD (204 cv)diesel-204 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 330 Ci (231 cv)essence-231 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) 330 d/xd/CD 3.0 (184 cv)--184 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) Autres Motorisations----
Série 3 Décapotable (E46) (04/2000 - 12/2007) M3 (343 cv)essence-343 hp-
Série 3 Décapotable (E46) (04/2000 - 12/2007) M3 3.2 US (333 cv)--333 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 316 i 1.9 (105 cv)--105 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 318 d (115 cv)diesel-116 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 318 i (118 cv)essence-118 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 320 d (136 cv)diesel-136 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 320 d (150 cv)diesel-150 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 320 i (150 cv)essence-150 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 320 i (170 cv)essence-170 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 323 i (170 cv)essence-170 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 325 i (192 cv)essence-192 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 325 xi (192 cv)essence-192 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 328 i (193 cv)essence-193 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 d (184 cv)diesel-184 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 d (204 cv)diesel-204 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 i (231 cv)essence-231 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 xd (184 cv)diesel-184 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 xd (204 cv)diesel-204 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) 330 xi (231 cv)essence-231 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) Autres Motorisations----
Série 3 Touring (E46) (06/1999 - 07/2005) M3 3.2 (343 cv)--343 hp-
Série 3 Touring (E46) (06/1999 - 07/2005) M3 3.2 US (333 cv)--333 hp-
