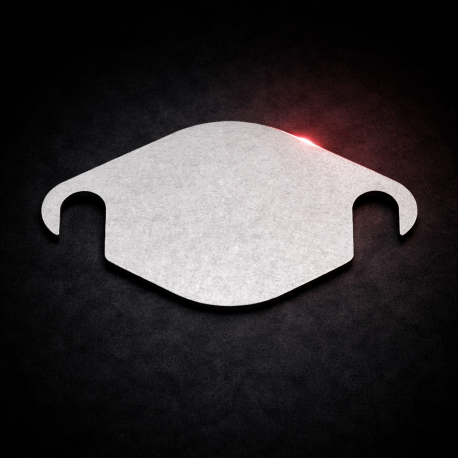

EGR blanking plate 1.8 TDCI Duratorq
304 stainless plate made in France to block off the EGR valve of Ford 1.8 TDCi Duratorq engines (Focus II, C-Max, Mondeo IV, S-Max, Galaxy, Transit Connect). Solid plate or partial flange.
15,49 € tax incl.
- Order today
- Shipping from our warehouse
- Delivery Tue 24 Nov
EGR plate for Ford 1.8 TDCi Duratorq
This 304 stainless steel plate, laser cut and made in France, fits on the original EGR valve and blocks the recirculated exhaust gas (fully or partially depending on the version chosen). The result: a cleaner air/fuel mixture, less intake fouling, more torque. Stainless steel does not rust or warp with heat.
Solid plate or partial flange

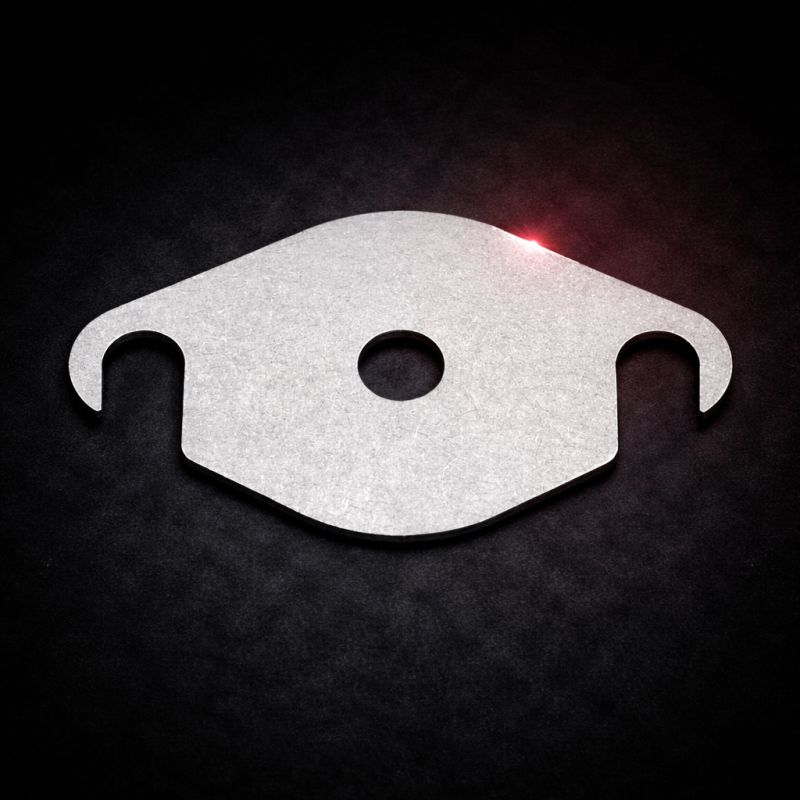

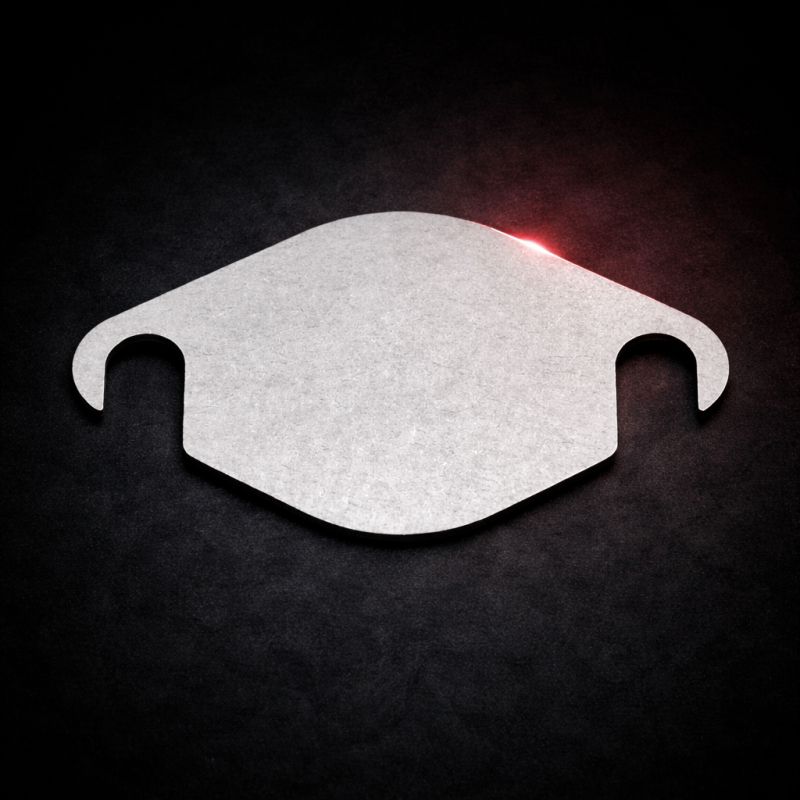

Solid plate: full blanking. Partial flange: lets a small gas flow through, reducing the risk of ECU detection.
Warning light
With the solid plate, the ECU may detect the lack of EGR flow, especially on the most recent versions (Euro 4 and Euro 5): the engine warning light may come on and the engine may enter limp mode. Plan a remap in that case, or choose the partial flange.
Compatible vehicles
- Ford: Focus II, Focus C-Max and C-Max 1.8 TDCi 115 hp, Mondeo IV, S-Max and Galaxy II 1.8 TDCi 100 / 125 hp, Transit Connect and Tourneo Connect 1.8 TDCi / Di 75 to 110 hp
How do I check my valve matches?
This plate fits the electric EGR valve of Ford 1.8 TDCi Duratorq (Lynx) engines. Check the part number engraved on your valve:
- Valve numbers: Ford 1363422, 1369213, 1387084, 1563296, 4M5Q-9424-CA, 4M5Q-9424-CB, 4M5Q-9424-CC, 4M5Q-9424-CD – equivalent : Ridex 1145E0087
Why block off the EGR valve?
Over the miles, the EGR valve clogs with carbon and ends up sticking: warning light, P0400 / P0401 / P0403 codes, loss of power, flat spots, black smoke. Cleaning often lasts only a few thousand kilometres. Blocking it off gives you back an engine that breathes and low-end torque.
Fitting
The fitting direction is shown on the product photos. Remove the valve, insert the plate, refit to factory torque. Take the opportunity to clean the intake pipe.
Box contents
- 1 plate in 304 stainless steel, laser cut and made in France, solid plate or partial flange as selected
Engine silicone tube available as an accessory, for a perfect seal.
Not sure about your engine? Send us a photo of your valve and we will check fitment.
| Materials: | Stainless steel |
| Motorization: | 1.8 TDCi (115 hp) |
| Motorization: | 1.8 TDCi (101 / 125 hp) |
| Motorization: | 1.8 TDCi (100 / 125 hp) |
| Make: | FORD |
| Model: | S-Max (04/2006 - 03/2015) |
| Model: | Focus II (09/2004 - 02/2011) |
| Model: | Focus C-Max (06/2003 - 02/2007) |
| Model: | Mondeo III (06/2007 - 08/2014) |
| Model: | C-Max (CB3) (02/2007 - 10/2010) |
| Model: | Galaxy II (04/2006 - 04/2015) |
| Product Range : | Engine |
| Engine | EGR and gas recirculation |
Compatible vehicles (21)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| C-Max I (DM2) (02/2007 - 09/2010) | 1.8 TDCi (115 cv) | diesel | - | 115 hp | - |
| Focus C-Max (DM2) (10/2003 - 03/2007) | 1.8 TDCi (115 cv) | diesel | - | 115 hp | - |
| Focus II (DB, DH, FCH) (04/2005 - 09/2012) | 1.8 TDCi (115 cv) | diesel | - | 115 hp | - |
| Focus II 3/5 Portes (DA, DP, HCP) (07/2004 - 09/2012) | 1.8 TDCi (115 cv) | diesel | - | 115 hp | - |
| Focus II Turnier (DA, DS, FFS) (07/2004 - 09/2012) | 1.8 TDCi (115 cv) | diesel | - | 115 hp | - |
| Galaxy II (WA6) (05/2006 - 06/2015) | 1.8 TDCi (100 cv) | diesel | - | 125 hp | - |
| Galaxy II (WA6) (05/2006 - 06/2015) | 1.8 TDCi (125 cv) | diesel | - | 125 hp | - |
| Mondeo IV (BA7) (03/2007 - 01/2015) | 1.8 TDCi (100 cv) | diesel | - | 125 hp | - |
| Mondeo IV (BA7) (03/2007 - 01/2015) | 1.8 TDCi (125 cv) | diesel | - | 125 hp | - |
| Mondeo IV 3/5 Portes (BA7) (03/2007 - 01/2015) | 1.8 TDCi (100 cv) | diesel | - | 100 hp | - |
| Mondeo IV 3/5 Portes (BA7) (03/2007 - 01/2015) | 1.8 TDCi (125 cv) | diesel | - | 125 hp | - |
| Mondeo IV Turnier (BA7) (03/2007 - 01/2015) | 1.8 TDCi (100 cv) | diesel | - | 100 hp | - |
| Mondeo IV Turnier (BA7) (03/2007 - 01/2015) | 1.8 TDCi (125 cv) | diesel | - | 125 hp | - |
| S-Max Monospace (WA6) (05/2006 - 12/2014) | 1.8 TDCi (100 cv) | diesel | - | 125 hp | - |
| S-Max Monospace (WA6) (05/2006 - 12/2014) | 1.8 TDCi (125 cv) | diesel | - | 125 hp | - |
| Tourneo Connect (06/2002 - 12/2013) | 1.8 TDCi (110 cv) | diesel | - | 110 hp | - |
| Tourneo Connect (06/2002 - 12/2013) | 1.8 TDCi (90 cv) | diesel | - | 90 hp | - |
| Tourneo Connect (06/2002 - 12/2013) | 1.8 TDCi /TDDi /DI (75 cv) | diesel | - | 75 hp | - |
| Transit Connect Camionnette/Monospace (P65, P70, P80) (06/2002 - 12/2013) | 1.8 DI (75 cv) | diesel | - | 75 hp | - |
| Transit Connect Camionnette/Monospace (P65, P70, P80) (06/2002 - 12/2013) | 1.8 TDCi (110 cv) | diesel | - | 110 hp | - |
| Transit Connect Camionnette/Monospace (P65, P70, P80) (06/2002 - 12/2013) | 1.8 TDCi (90 cv) | diesel | - | 90 hp | - |
