EGR blanking plate 2.0 HDi/TDCi/JTD

EGR delete for 2.0 HDi / TDCi 136 hp engines

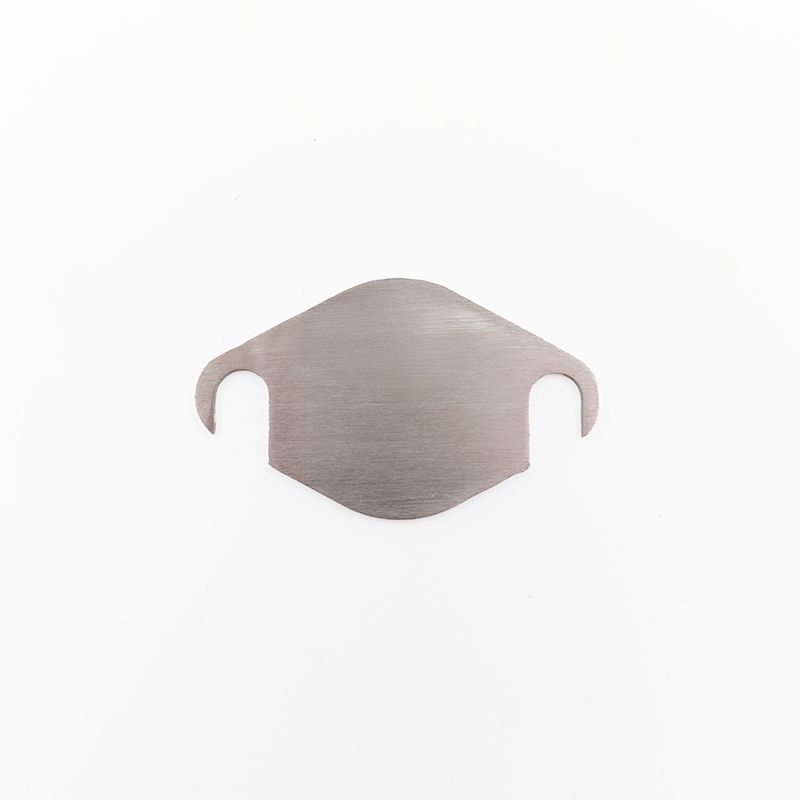

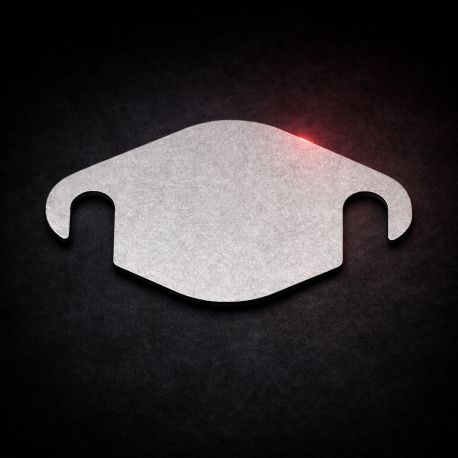

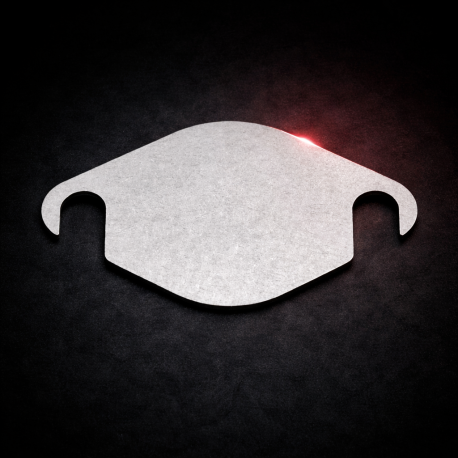

This laser-cut 304 stainless steel plate, made in France, blocks the exhaust gas recirculated by the EGR valve. The result: a cleaner air/fuel mixture, better intake breathing, more torque and less carbon build-up. Stainless steel does not rust or warp with heat, so the plate stays sealed over time.

Solid plate or drilled flange: two versions

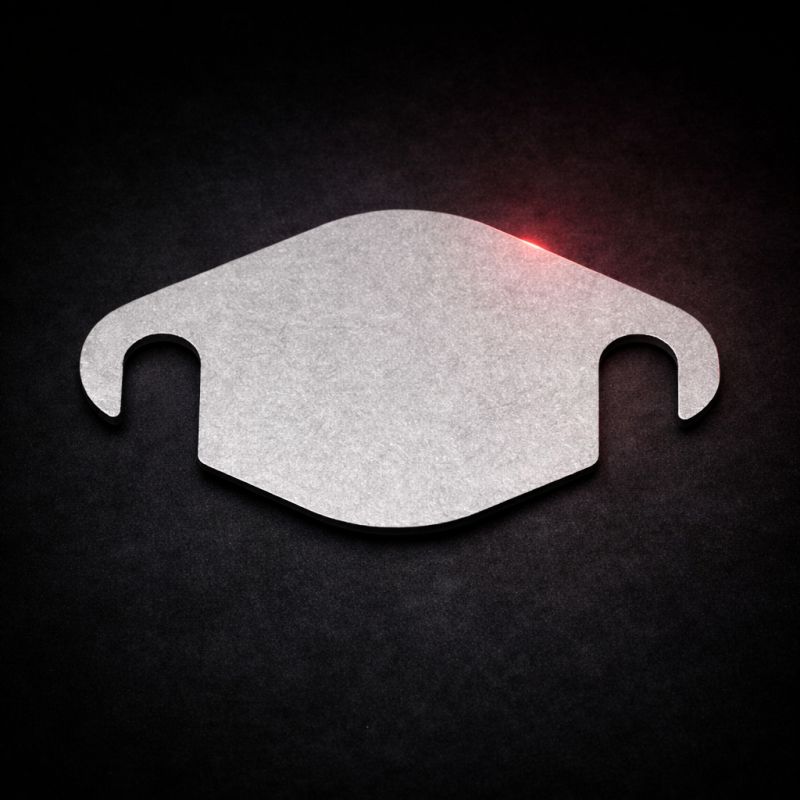

• Blanking plate (solid): fully stops exhaust gas recirculation.

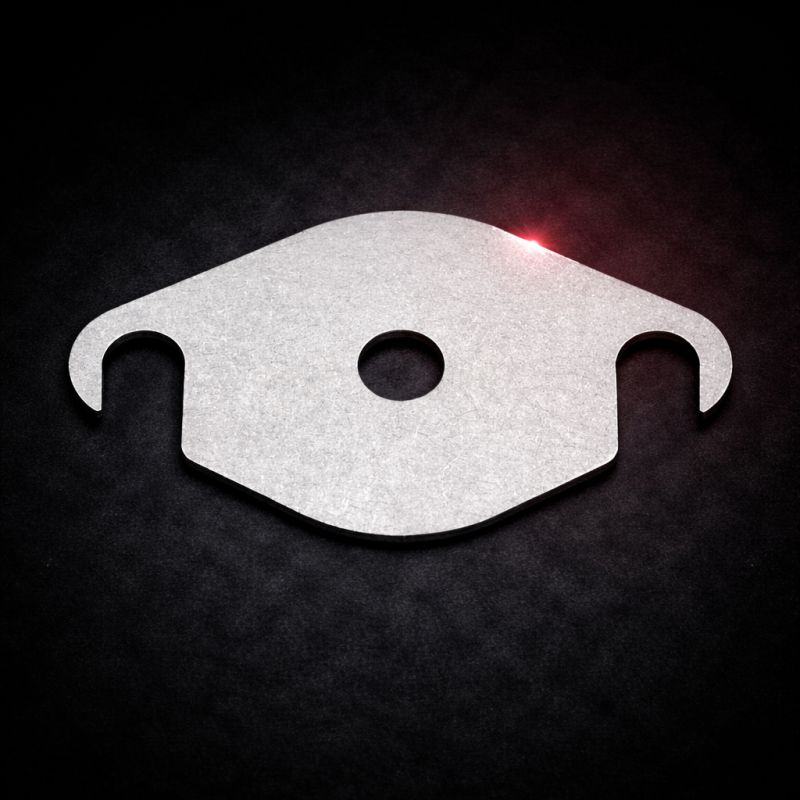

• Partial flange (drilled): lets a small gas flow through, reducing the risk of ECU detection.

Warning light: what you need to know

On these engines (mostly from 2004), the ECU may detect the lack of EGR flow with the solid plate: the engine warning light may come on and the engine may enter limp mode. In that case, plan a remap disabling the EGR function, or choose the drilled flange version.

Compatible vehicles

Fits the 2.0 16V 136 hp diesel engine: PSA 2.0 HDi DW10BTED4, Ford 2.0 TDCi Duratorq, Volvo 2.0 D (D4204T), Fiat 2.0 Multijet. Found in:

• Peugeot: 307 (3/5-door, Estate, SW, CC), 308 I (hatchback, SW, CC), 407 (saloon, SW, Coupé), 607, 807, Expert II
• Citroën: C4 I (hatchback, coupé), C4 Picasso and Grand Picasso I, C5 II and III, C8, Jumpy II
• Ford: Focus II (all body styles), Focus C-Max and C-Max, Mondeo IV, S-Max, Galaxy II, Kuga I
• Volvo: C30, C70 II, S40 II, V50, S80 II, V70 III (2.0 D)
• Fiat: Scudo II, Ulysse II (2.0 Multijet)

Not covered: Euro 5 and 6 2.0 HDi / BlueHDi (140, 150, 163 hp and above), Ford Mondeo III 2.0 TDCi 130 hp, Volvo D3 5-cylinder.

How do I check my EGR valve matches?

This plate is designed for the 5-pin electric EGR valve of these engines, as shown in the product photo. Our plates are developed valve by valve, not vehicle by vehicle: before ordering, compare your valve with our photos, or email us a photo of your engine.

OE numbers and EGR valve equivalents

• PSA (Peugeot / Citroën): 1618GZ, 9656612380
• Ford: 1436390

This valve is also sold under the aftermarket references Ridex 1145E0022, NRF 48398, Magneti Marelli 571822112098, AKS Dasis 065012N, NTY EGR-CT-002, Abakus 121-01-063, Engitech ENT500055.

Why block off the EGR valve?

The EGR valve feeds part of the exhaust gas back into the intake to reduce nitrogen oxides. On the 2.0 HDi / TDCi it clogs with carbon, especially in town driving: warning light, P0400 / P0401 / P0403 codes, loss of power, hesitation, black smoke. Cleaning often lasts only a few thousand kilometres. Blocking it off improves engine efficiency and available torque.

Fitting

The fitting direction is shown on the product photos: an arrow or drawing acts as instructions. Remove the valve, insert the plate, refit to factory torque. Take the opportunity to clean the intake pipe.

Box contents

• 1 EGR delete plate in laser-cut 304 stainless steel, made in France, solid or drilled version as selected

Reinforced EGR plate gasket and engine silicone tube available separately as accessories, for a perfect seal.

Any questions or doubts about your engine? Our customer service replies quickly, photo in hand.
