EGR Forge VAG 130-160cv FMEGRRPL valve removal kit

EGR Forge motorsport valve replacement kit

For VAG vehicles 1.9TDI 130cv, 150cv, 160cv.

Audi, Seat, Skoda, Volkswagen

Total length of kit: 13cm.

Diameter: 6cm.

Attention: It is necessary to cut the metal sticker from the intake hose to fix the metal necklace (see photograph). You can opt for the KITEGR130 kit if you want to install without modification.

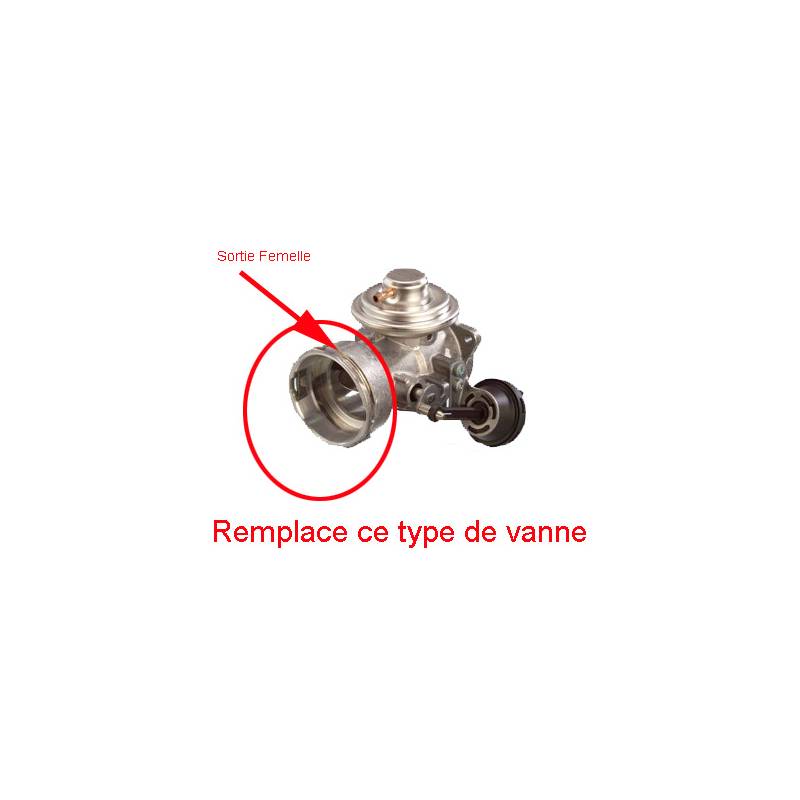

This Kit allows elimination of the valve recirculation of gas exhaust (EGR) on VAG vehicles (VAG vehicles)transversal engine). Engines 1.9TDI, 130cv 150cv or160cv.

Original reference :

• AUDI: 038 131 501 AL
• FORD: 1 212 966
• FORD: 1M 21 9D475 AA
• SEAT: 038 131 501 AA
• SEAT: 038 131 501 AL
• SKODA: 038 131 501 AL
• VOLKSWAGEN: 038 131 501 AA
• VOLKSWAGEN: 038 131 501 AL
• AUDI: 038 131 501 AT
• AUDI: 038 131 501 T
• SEAT: 038 131 501 AT
• SEAT: 038 131 501 T
• SKODA: 038 131 501 AT
• SKODA: 038 131 501 T
• VOLKSWAGEN: 038 131 501 AT
• VOLKSWAGEN: 038 131 501 T

Compatible vehicles:

• AUDI A4 (8E2, B6) 1.9 TDI (130 CH)
• AUDI A3 (8L1) 1.9 TDI (130 CH)
• AUDI A3 (8L1) 1.9 TDI quattro (130 CH)
• AUDI A4 (8E2, B6) 1.9 TDI quattro (130 CH)
• AUDI A4 Avant (8E5, B6) 1.9 TDI (130 CH)
• AUDI A4 Avant (8E5, B6) 1.9 TDI quattro (130 CH)
• AUDI A6 (4B, C5) 1.9 TDI (130 CH)
• AUDI A6 Avant (4B, C5) 1.9 TDI (130 CH)
• FORD GALAXY 1.9 TDI (115 CH)
• FORD GALAXY 1.9 TDI (130 CH)
• FORD GALAXY 1.9 TDI (150 CH)
• SEAT ALHAMBRA (7V8, 7V9) 1.9 TDI (115 CH)
• SEAT ALHAMBRA (7V8, 7V9) 1.9 TDI (131 CH)
• SEAT ALHAMBRA (7V8, 7V9) 1.9 TDI (150 CH)
• SEAT ALHAMBRA (7V8, 7V9) 1.9 TDI 4motion (115 CH)
• SEAT IBIZA IV (6L1) 1.9 TDI Cupra R (160 CH)
• SEAT LEON (1M1) 1.9 TDI (130 CH)
• SEAT LEON (1M1) 1.9 TDI (150 CH)
• SEAT LEON (1M1) 1.9 TDI Syncro (150 CH)
• SEAT TOLEDO II (1M2) 1.9 TDI (130 CH)
• SEAT TOLEDO II (1M2) 1.9 TDI (150 CH)
• SKODA OCTAVIA (1U2) 1.9 TDI (130 CH)
• SKODA OCTAVIA Combi (1U5) 1.9 TDI (130 CH)
• SKODA SUPERB (3U4) 1.9 TDI (130 CH)
• VOLKSWAGEN BORA (1J2) 1.9 TDI (130 CH)
• VOLKSWAGEN BORA (1J2) 1.9 TDI (150 CH)
• VOLKSWAGEN BORA (1J2) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN BORA (1J2) 1.9 TDI 4motion (150 CH)
• VOLKSWAGEN BORA Break (1J6) 1.9 TDI (130 CH)
• VOLKSWAGEN BORA Break (1J6) 1.9 TDI (150 CH)
• VOLKSWAGEN BORA Break (1J6) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN BORA Break (1J6) 1.9 TDI 4motion (150 CH)
• VOLKSWAGEN GOLF IV (1J1) 1.9 TDI (130 CH)
• VOLKSWAGEN GOLF IV (1J1) 1.9 TDI (150 CH)
• VOLKSWAGEN GOLF IV (1J1) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN GOLF IV (1J1) 1.9 TDI 4motion (150 CH)
• VOLKSWAGEN GOLF IV Variant (1J5) 1.9 TDI (130 CH)
• VOLKSWAGEN GOLF IV Variant (1J5) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN MULTIVAN V (7HM, 7HF) 1.9 TDI (105 CH)
• VOLKSWAGEN PASSAT (3B3) 1.9 TDI (130 CH)
• VOLKSWAGEN PASSAT (3B3) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN PASSAT Variant (3B6) 1.9 TDI (130 CH)
• VOLKSWAGEN PASSAT Variant (3B6) 1.9 TDI 4motion (130 CH)
• VOLKSWAGEN SHARAN (7M8, 7M9, 7M6) 1.9 TDI (115 CH)
• VOLKSWAGEN SHARAN (7M8, 7M9, 7M6) 1.9 TDI (130 CH)
• VOLKSWAGEN SHARAN (7M8, 7M9, 7M6) 1.9 TDI (150 CH)
• VOLKSWAGEN SHARAN (7M8, 7M9, 7M6) 1.9 TDI 4motion (115 CH)
• VOLKSWAGEN Transporter V Bus/car (7HB, 7HJ) 1.9 TDI (105 CH)
• VOLKSWAGEN Transporter V Bus/car (7HB, 7HJ) 1.9 TDI (85 CH)
• VOLKSWAGEN TRANSPORTER V Camion platform/Châssis (7JD, 7JE, 7JL, 7JY 1.9 TDI (105 CH)
• VOLKSWAGEN TRANSPORTER V Camion platform/Châssis (7JD, 7JE, 7JL, 7JY 1.9 TDI (85 CH)
• VOLKSWAGEN Transporter V Camionette (7HA, 7HH) 1.9 TDI (105 CH)
• VOLKSWAGEN Transporter V Camionette (7HA, 7HH) 1.9 TDI (85 CH)

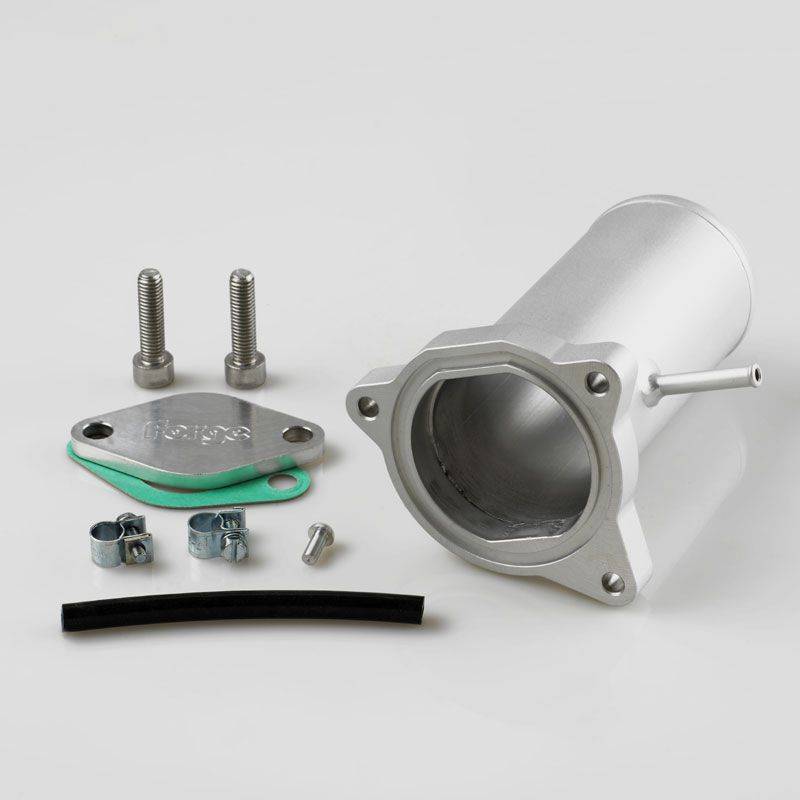

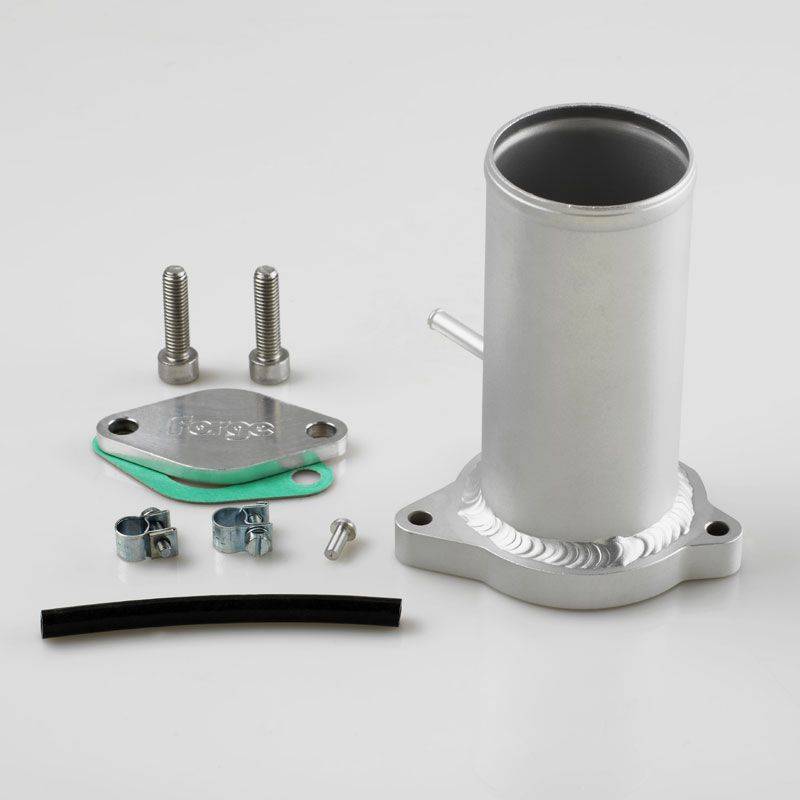

Contains the kit replacement, a plate Obturation secure and a connection for theindicator of overhead ( Turbo pressure gauge), which can be Obtained if it is not necessary with one short length of hose (provided).

Note: He is necesary re-use the gasket the valve existing joint with this kit.
Not compatible with Golf MK5 or the Golf MK6 Volkswagen, and all 1.9TDI 105cv engines based on 2.0TDI architecture.

The EGR valve is an engine element to recycle part of the exhaust gas in the intake. They're burned a second time.

This technique crushes the intake manifold and causes motor problems.

Kits or plates sold on https://dynaparts.fr/en/ allow to butcher, remove or flange EGR valves. You can thus reduce or delete any problems, in a curative or preventive way. Attention, on recent engines, it is possible that a light will turn on the dashboard, see the vehicle in degraded mode (following the vehicle mark or year of traffic). It is therefore sometimes possible that an electronic intervention is necessary to associate an electronic deletion with this mechanical deletion. Our products are developed on vehicle valves and fixed without major modifications. To make your choice, in case of hesitation, compare the photos of our kits with the valve mounted on your vehicle, or refer to the listing of compatible motorizations.

Do you have a doubt? Contact the customer service.

Here, example of mounting an EGR valve removal kit on a PAssat 1.9TDI 130 of 2001. Kit presented: KITEGR130
