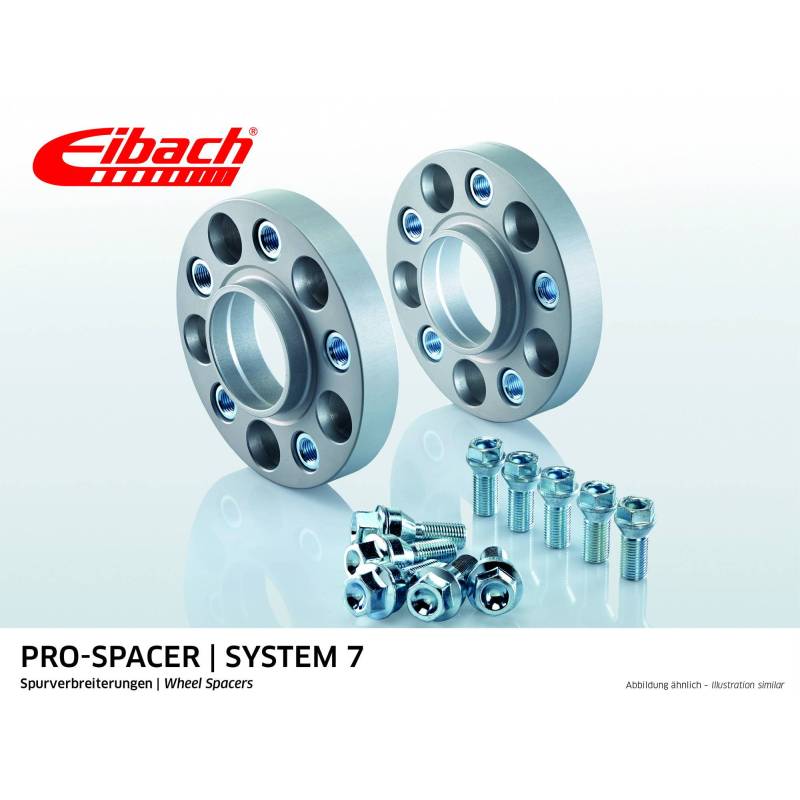

Track thicknesses Eibach 108x5 in 25 mm

Sold in pairs.

Thickness in mm (coating): 25 mm

total width by axles: 50 mm

Distance between centers: 108x5

Moyeu diameter (Aisage): 67 mm

Fastening thread: M14x1.5

Colori des cales : Aluminium

Screws included

With rim centerer

Fixing system: Double bolt

Screw mounting system

Type of system Eibach : 7

kit reference : S90-7-25-017

Example of compatible vehicles:

VOLVO XC90 I 10.02 -

VW AMAROK 09.10 -

VW TOUAREG (7LA, 7L6, 7L7) 10.02 - 05.10

VW MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) 04.03 -

VW Transporter T5 BUS (7HB, 7HJ, 7EB, 7EJ, 7EF) 04.03 -

VW Transporter T5 KASTEN (7HA, 7H, 7EA, 7EH) / Transporter T5 BOX (7HA, 7H, 7EA, 7EH) 04.03 -

VW Transporter T5 PRITSCHE/FAHRGESTELL (7JD, 7JE, 7JL, 7JY, 7JZ) / Transporter T4 PLATFORM/CHASSIS (7JD, 7JE, 7JL, 7JY, 7JZ) 04.03 -

VW MULTIVAN T6 (SGF, SGM, SGN) 04.15 -

VW Transporter T6 BUS (SGB, SGG, SGJ) 04.15 -

VW Transporter T6 KASTEN (SGA, GHS) / Transporter T6 BOX (SGA, GHS) 04.15 -

VW Transporter T6 PRITSCHE/FAHRGESTELL (SFD, SFE, SFL, SFZ) / Transporter T6 PLATFORM/CHASSIS (SFD, SFE, SFL, SFZ) 04.15 -

Be careful to take this technical information into account before ordering! In case of doubt, our team remains at your disposal to refine your research!

Technical Notes: The nuts must be exchanged with those provided. For original wheels: S4-7-14-50-28-19. - These are included!

Suitable only if the outer diameter of the intertoise is greater than 165 mm. - from the production number 161220 - Extension (note the marking on the intertoise!)

A question about compatibility, fixing your hold? Need to find the right visserie? Contact us
