Dynaparts 520cc BP fuel pump kit for MQB/MQB EVO 2WD

Dynaparts low-pressure fuel pump kit for MQB / MQB EVO Walbro 520.

Compatible with certain 1.0TSI/TFSI, 1.2TSI/TFSI, 1.4TSI/TFSI, 1.5TSI/TFSI, 2.0TSI/TFSI with 2-wheel drive, as well as the Golf 7 GTI and TCR, and the Golf 8 GTI, etc.

Upgrade your low-pressure pump with our kit.

Compatible with submersible fuel pumps with 39.5mm dimeter and two original outlets.

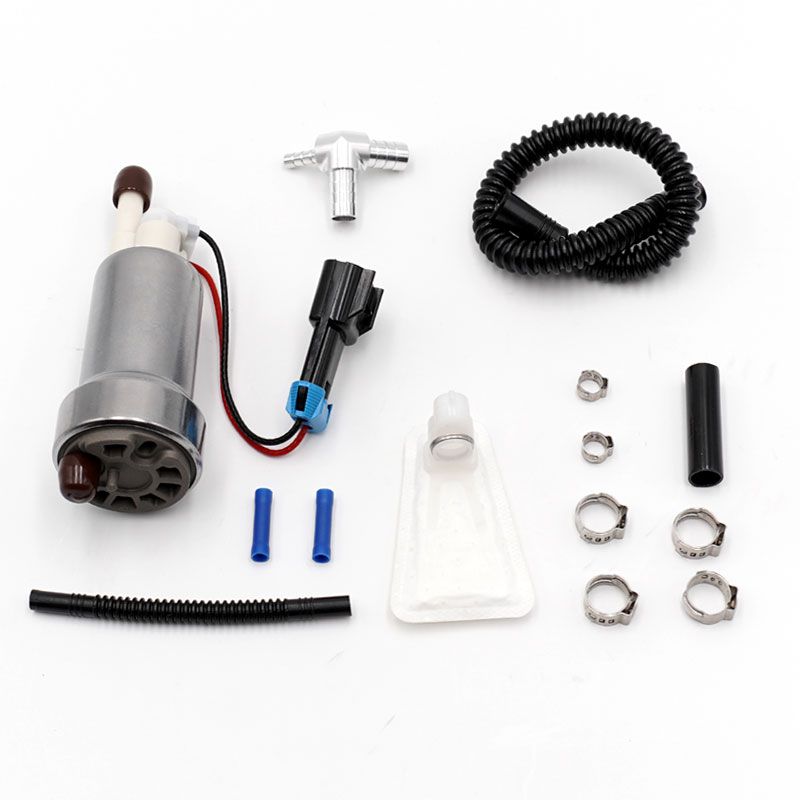

Comprising accessories and a Walbro Hellcat F90000285 (Ti Automotive) pump/filter.

Replace the low-pressure pump contained in the basket using our kit and the instructions, which can be downloaded here. Attachment.

Compatible with E85 ethanol and capable of handling fuels up to 985 hp.

Only compatible with pumps with part numbers 5Q0919051BK, 5Q0919051AP, 5Q0919051A, 5WA919051C, 5Q0919051AA, 5Q0919051BC, 5Q0919051CC, 5Q0919051CN, 1K0919051CL, 1K0919051DB ,1K0919051BH ,1K0919051AQ ,1K0919051AQ and 5Q0919051CB.

Please note that fitting some of these references may require slight modification of the pump body retaining ring to slightly enlarge its diameter.

Includes stainless steel clamps, PTFE hose set, and aluminum T-piece.

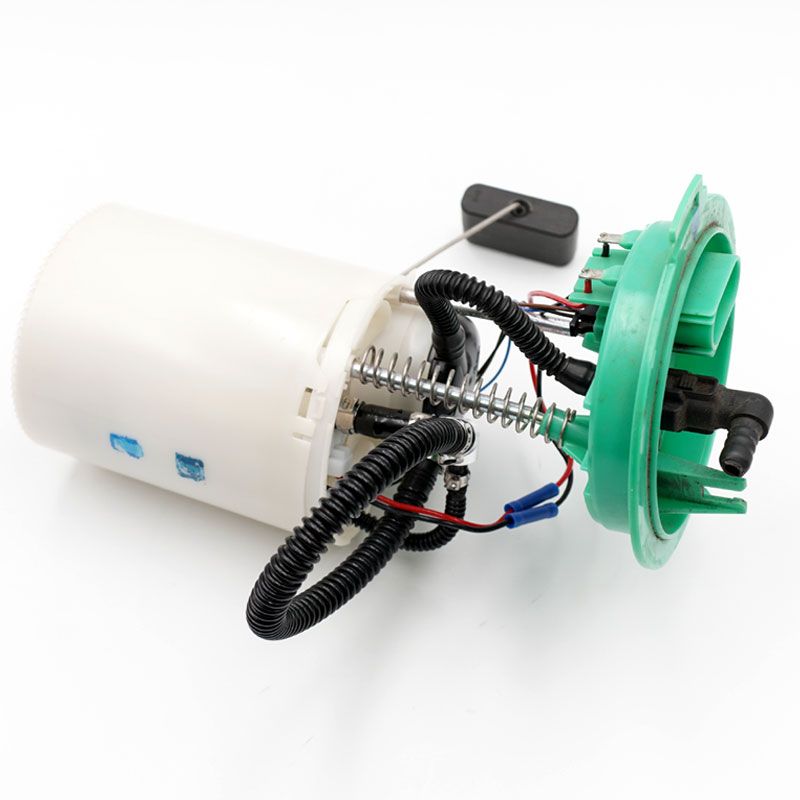

Original pump shown here as an example.
