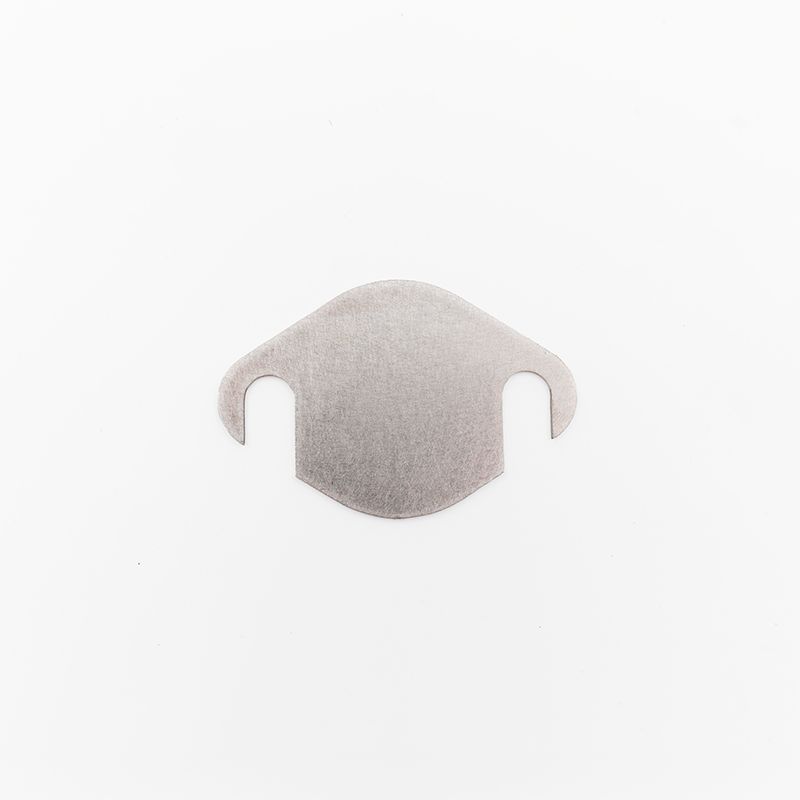

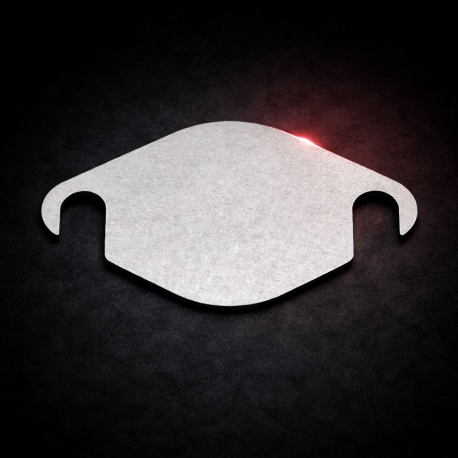

EGR blanking plate 1.6 CRDI
Stainless steel EGR delete plate for Hyundai and Kia 1.4 and 1.6 CRDi engines (D4FC / D4FB), 5-pin valve 28410-2A300. Made in France, it improves engine efficiency by blocking exhaust gas recirculation. Fits i30, ix20, Ceed, Rio III, Soul, Venga.
15,49 € tax incl.
- Order today
- Shipping from our warehouse
- Delivery Tue 27 Oct
Reliable EGR valve delete for Hyundai / Kia 1.4 and 1.6 CRDi engines
This stainless steel 304 plate, laser-cut in France, blocks the flow of exhaust gases recirculated by the EGR valve. Result: a cleaner air/fuel mix, better-breathing intake, more torque, and less carbon build-up in the engine.
Compatible vehicles
Fits the 1.4 CRDi (D4FC) and 1.6 CRDi (D4FB) diesel engines of the Hyundai-Kia group, from 75 to 136 hp, fitted notably to:
- Hyundai: i20 I, i30 (hatchback, estate and Coupe), ix20, Accent IV, Elantra
- Kia: Cee'd and Pro Cee'd, Rio III, Soul I, Venga, Carens III, Rondo III
How to identify my EGR valve: 5 pins or 2 pins?

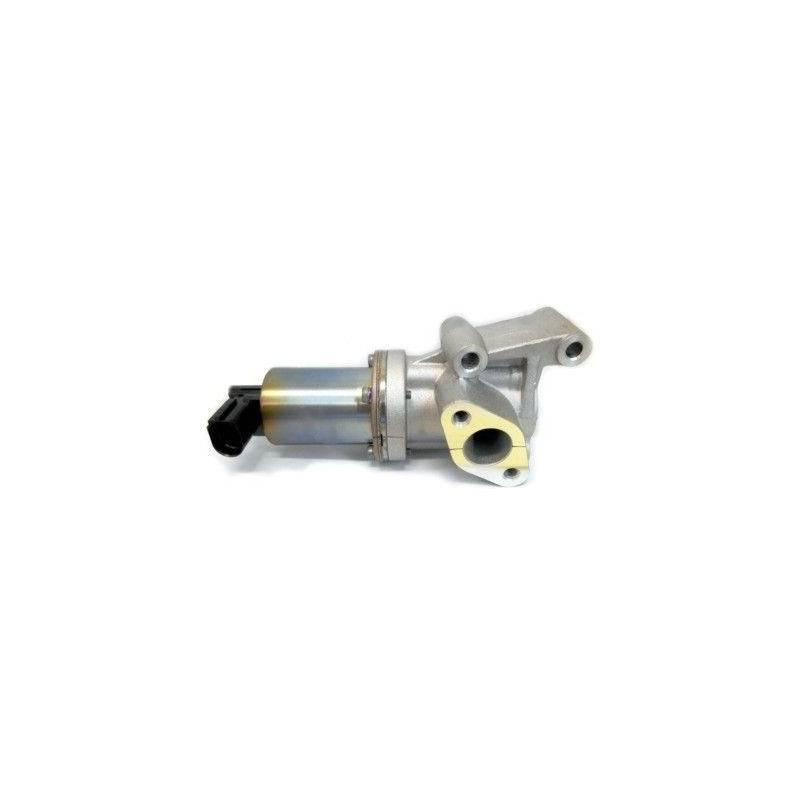

On these same 1.4 and 1.6 CRDi engines, Hyundai and Kia used two different EGR valves. This plate fits the electric valve with a 5-pin connector, part number 28410-2A300. The valve with a 2-pin connector (part number 28410-2A350) has a different shape: do not mix them up. Before ordering, simply check the connector on your valve, compare with our product photos, or send us a photo of your engine by email.
OEM references and EGR valve equivalents
To make sure you order the right plate, compare your EGR valve's reference number with those listed below.
- Hyundai / Kia: 28410-2A300
This valve is also sold under the equivalent part numbers Febi Bilstein 174388, Nissens 98312, Pierburg 7.11237.07.0, NGK 95819, NRF 48696, Hitachi / Astemo 2505957 and 2508497, Meat & Doria 88305, Autlog AV6216 and ERA 555357.
Why block off the EGR valve?
The EGR valve recirculates part of the exhaust gases back into the intake to reduce nitrogen oxide emissions. The downside: it clogs the intake, produces black smoke, and weakens the air/fuel mix. Blocking it off improves engine efficiency and available torque.
Fitting and check engine light

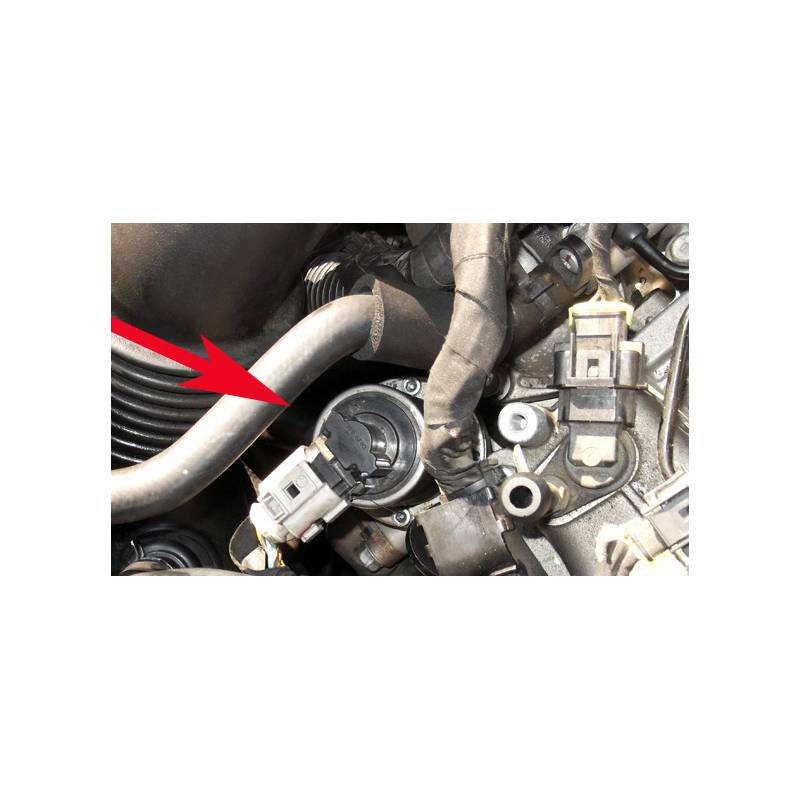

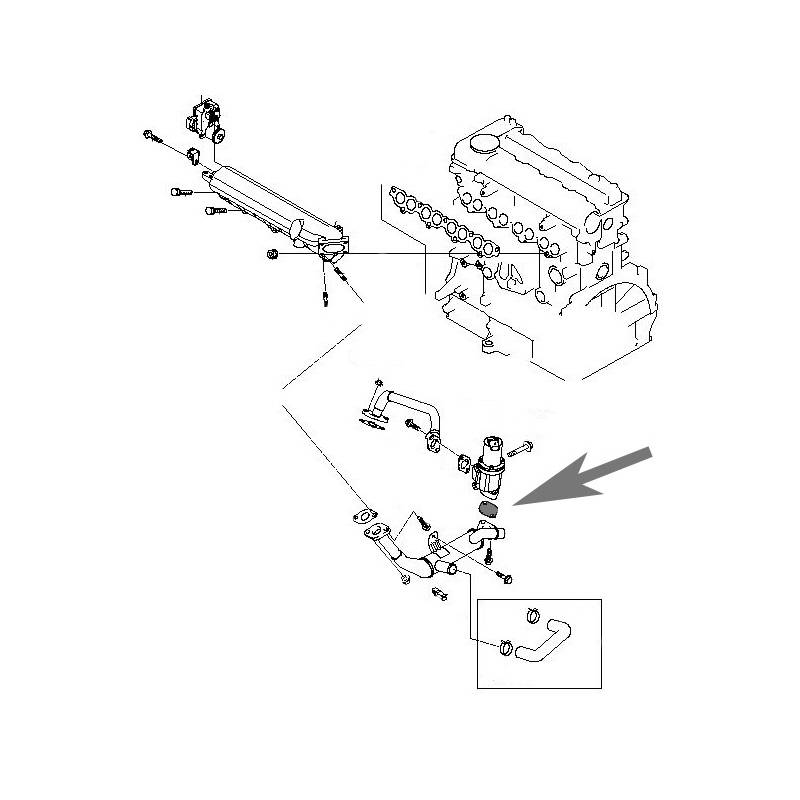

The correct fitting direction is shown directly on the product photos. On this type of ECU, the absence of EGR flow can trigger a dashboard warning light or limp mode. An electronic intervention (reflash or fault removal) is then needed to clear the alert for good.
What's in the box
- 1 stainless steel 304 EGR delete plate, laser-cut
Engine-grade silicone sealant available separately as an accessory, to perfect the seal on installation.
Any question or doubt about your engine? Our customer service team replies quickly, just send a photo.
| Materials: | Stainless steel |
| Position: | Before |
| Motorization: | Other Motorizations |
| Motorization: | 1.4 CRDi (90 hp) |
| Motorization: | 1.6 CRDi (115 hp) |
| Motorization: | 1.6 CRDi (128 hp) |
| Motorization: | 1.6 GDI (135 hp) |
| Motorization: | 1.4 CRDi (75 hp) |
| Motorization: | 1.6 IDRC (110 cv) |
| Motorization: | 1.6 CRDi (116 hp) |
| Motorization: | 1.6 CRDi (135 hp) |
| Make: | Hyundai |
| Make: | KIA |
| Model: | Soul (10/2008 - Today) |
| Model: | Carens IV (03/2012 - Today) |
| Model: | i20 (10/2008 - 07/2020) |
| Model: | Ceed II (05/2012 - Today) |
| Model: | i30 CW (11/2007 - 07/2012) |
| Model: | Pro Ceed (10/2007 - 12/2011) |
| Model: | i30 II (CZE) SW (05/2012 - 02/2017) |
| Model: | Rio III (06/2011 - Today) |
| Model: | Accent IV (03/2012 - Today) |
| Model: | Venga (12/2009 - Today) |
| Model: | Ceed (08/2006 - 07/2012) |
| Model: | i30 (03/2007 - 01/2012) |
| Model: | Ceed II SW (08/2012 - Today) |
| Model: | i30 II (CZE) HB (01/2012 - 02/2017) |
| Model: | Pro Ceed II (02/2013 - Today) |
| Model: | ix20 (10/2010 - Today) |
| Product Range : | Engine |
| Engine | EGR and gas recirculation |
Compatible vehicles (37)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Accent IV (03/2012 - 2017) | Autres Motorisations | - | - | - | 2012+ |
| i20 (10/2008 - 07/2020) | 1.4 CRDi (90 cv) | diesel | 1400 cc | 90 hp | 2008-2020 |
| i20 (10/2008 - 07/2020) | 1.6 CRDi (116 cv) | diesel | 1600 cc | 116 hp | 2008-2020 |
| i20 (10/2008 - 07/2020) | Autres Motorisations | - | - | - | 2008-2020 |
| i30 (03/2007 - 01/2012) | 1.6 CRDi (115 cv) | diesel | 1600 cc | 115 hp | 2007-2012 |
| i30 CW (11/2007 - 07/2012) | 1.6 CRDi (115 cv) | diesel | 1600 cc | 115 hp | 2007-2012 |
| i30 II (CZE) HB (01/2012 - 02/2017) | 1.4 CRDI (90 cv) | diesel | 1400 cc | 90 hp | 2012-2017 |
| i30 II (CZE) HB (01/2012 - 02/2017) | 1.6 CRDI (110 cv) | diesel | 1600 cc | 110 hp | 2012-2017 |
| i30 II (CZE) HB (01/2012 - 02/2017) | 1.6 CRDI (128 cv) | diesel | 1600 cc | 128 hp | 2012-2017 |
| i30 II (CZE) HB (01/2012 - 02/2017) | 1.6 GDI (135 cv) | - | 1600 cc | 135 hp | 2012-2017 |
| i30 II (CZE) SW (05/2012 - 02/2017) | 1.4 CRDI (90 cv) | diesel | 1400 cc | 90 hp | 2012-2017 |
| i30 II (CZE) SW (05/2012 - 02/2017) | 1.6 CRDI (110 cv) | diesel | 1600 cc | 110 hp | 2012-2017 |
| i30 II (CZE) SW (05/2012 - 02/2017) | 1.6 CRDI (128 cv) | diesel | 1600 cc | 128 hp | 2012-2017 |
| i30 II (CZE) SW (05/2012 - 02/2017) | 1.6 GDI (135 cv) | - | 1600 cc | 135 hp | 2012-2017 |
| ix20 (10/2010 - 2019) | 1.4 CRDi (90 cv) | diesel | 1400 cc | 90 hp | 2010+ |
| ix20 (10/2010 - 2019) | 1.6 CRDi (135 cv) | diesel | 1600 cc | 135 hp | 2010+ |
| ix20 (10/2010 - 2019) | Autres Motorisations | - | - | - | 2010+ |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Carens IV (03/2012 - 2019) | Autres Motorisations | - | - | - | 2012+ |
| Ceed (08/2006 - 07/2012) | 1.6 CRDi (128 cv) | diesel | 1600 cc | 128 hp | 2006-2012 |
| Ceed II (05/2012 - 2018) | 1.4 CRDI (90 cv) | diesel | 1400 cc | 90 hp | 2012+ |
| Ceed II (05/2012 - 2018) | 1.6 CRDI (110 cv) | diesel | 1600 cc | 110 hp | 2012+ |
| Ceed II (05/2012 - 2018) | 1.6 CRDI (128 cv) | diesel | 1600 cc | 128 hp | 2012+ |
| Ceed II SW (08/2012 - 2018) | 1.4 CRDI (90 cv) | diesel | 1400 cc | 90 hp | 2012+ |
| Ceed II SW (08/2012 - 2018) | 1.6 CRDI (110 cv) | diesel | 1600 cc | 110 hp | 2012+ |
| Ceed II SW (08/2012 - 2018) | 1.6 CRDI (128 cv) | diesel | 1600 cc | 128 hp | 2012+ |
| Pro Ceed (10/2007 - 12/2011) | 1.6 CRDi (128 cv) | diesel | 1600 cc | 128 hp | 2007-2011 |
| Pro Ceed II (02/2013 - 2018) | 1.4 CRDI (90 cv) | diesel | 1400 cc | 90 hp | 2013+ |
| Pro Ceed II (02/2013 - 2018) | 1.6 CRDI (110 cv) | diesel | 1600 cc | 110 hp | 2013+ |
| Pro Ceed II (02/2013 - 2018) | 1.6 CRDI (128 cv) | diesel | 1600 cc | 128 hp | 2013+ |
| Rio III (06/2011 - 2016) | 1.4 CRDi (90 cv) | diesel | 1400 cc | 90 hp | 2011+ |
| Soul (10/2008 - 2013) | 1.6 CRDi (115 cv) | diesel | 1600 cc | 115 hp | 2008+ |
| Soul (10/2008 - 2013) | Autres Motorisations | - | - | - | 2008+ |
| Venga (12/2009 - 2019) | 1.4 CRDi (75 cv) | diesel | 1400 cc | 75 hp | 2009+ |
| Venga (12/2009 - 2019) | 1.4 CRDi (90 cv) | diesel | 1400 cc | 90 hp | 2009+ |
| Venga (12/2009 - 2019) | 1.6 CRDi (116 cv) | diesel | 1600 cc | 116 hp | 2009+ |
| Venga (12/2009 - 2019) | 1.6 CRDi (128 cv) | diesel | 1600 cc | 128 hp | 2009+ |
| Venga (12/2009 - 2019) | Autres Motorisations | - | - | - | 2009+ |
Related Products
Ref: DP-ENG-EGR-PLATE-60-DEC1

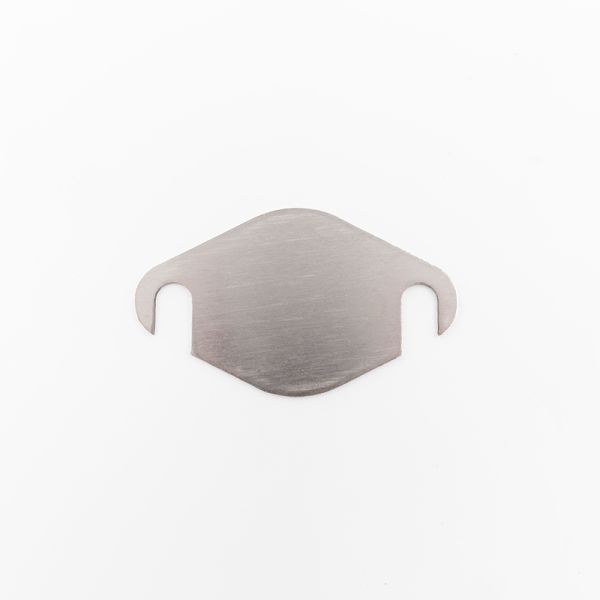

EGR blanking plate 2,9 CRDI
Ref: DP-ENG-EGR-PLATE-50

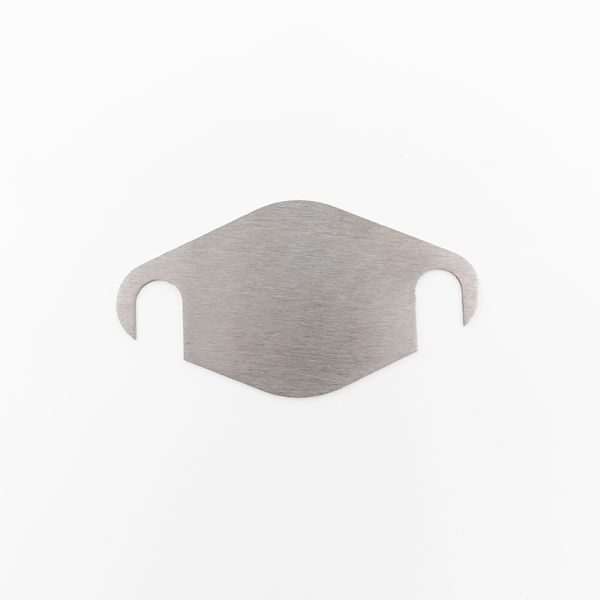

EGR blanking plate 2.0 CRDI
