Darkside VW Transporter DQ500 DSG Gearbox Front Mounted Oil Cooler Kit

Darkside VW Transporter DQ500 DSG Gearbox Front Mounted Oil Cooler Kit.

Darkside VW Transporter DQ500 DSG Gearbox Front Mounted Oil Cooler Kit
This Oil Cooler Kit replaces the standard oil cooler that comes on the DQ500 gearboxes found on VW Transporter 7 Speed models

Oil Coolers are an important addition to the DSG Gearboxes when being used in high temperature climates and continuous long journeys.

This is a Universal Kit to be mounted where suitable. It needs to be fitted in a position where airflow can easily pass through, such as the front of the car by the radiator or fog lights. The Universal brackets can be cut or bent to allow fitment in the correct place

Oil Cooler Specifications:

10 ROW - Max Pressure 10 Bar (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 75mm x D - 50mm
13 ROW - Max Pressure 10 Bar (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 100mm x D - 50mm
19 ROW - Max Pressure 10 Bar (145psi) - W (Overall) - 330mm / W (Core) - 257mm x H - 135mm x D - 50mm

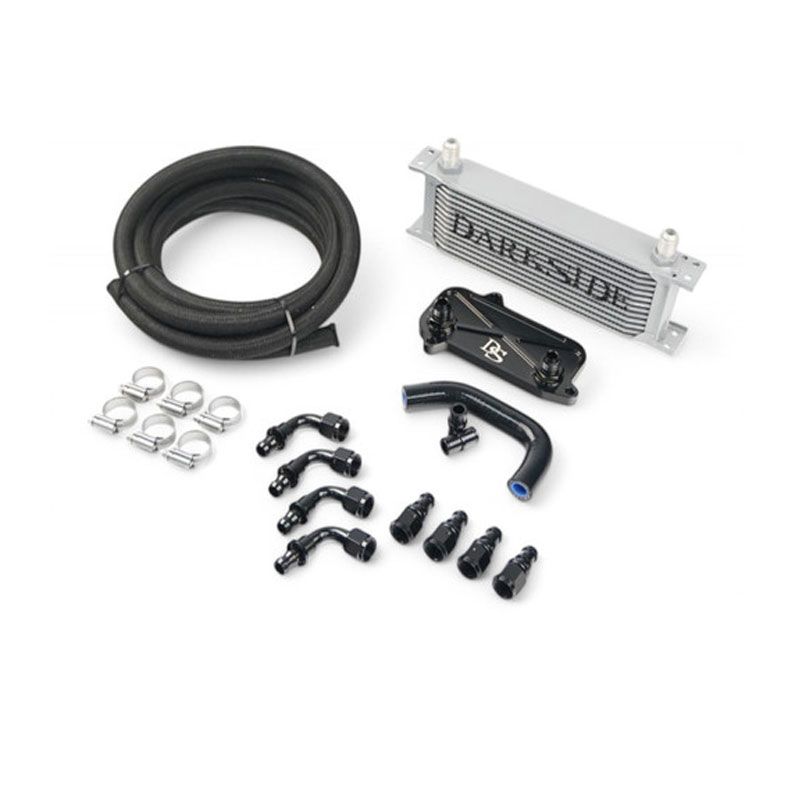

This Kit Consists of:

• 1x Darkside Oil Cooler (10 / 13 / 19 Row)
• 1x Coolant Hose
• 1x Universal Oil Cooler Bracket Set
• 1x Darkside Oil Cooler Take Off Plate
• 2x Oil Cooler Seals
• 4x Straight AN8 Fittings
• 4x 90 Degree AN8 Fittings
• 6x Mikalor Jubilee Clamps
• 4m of AN8 Braided Oil Cooler Hose

This Kit Will fit the Following Vehicles With the 0BT DQ500 7 Speed DSG Gearboxes:
Volkswagen Transporter T5 & T6

Suitable for Genuine VW Oil Cooler Part Numbers:
0BT317019 - 0BT 317 019
