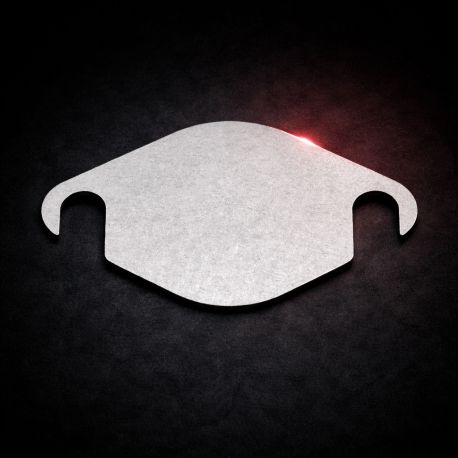

EGR blanking plate 1.9 / 2.4 JTD
304 stainless plate made in France to block off the EGR valve of 1.9 JTD / Multijet 8V and 2.4 JTD 10V engines (Fiat, Alfa Romeo, Lancia). Solid or drilled.
15,49 € tax incl.
- Order today
- Shipping from our warehouse
- Delivery Wed 18 Nov

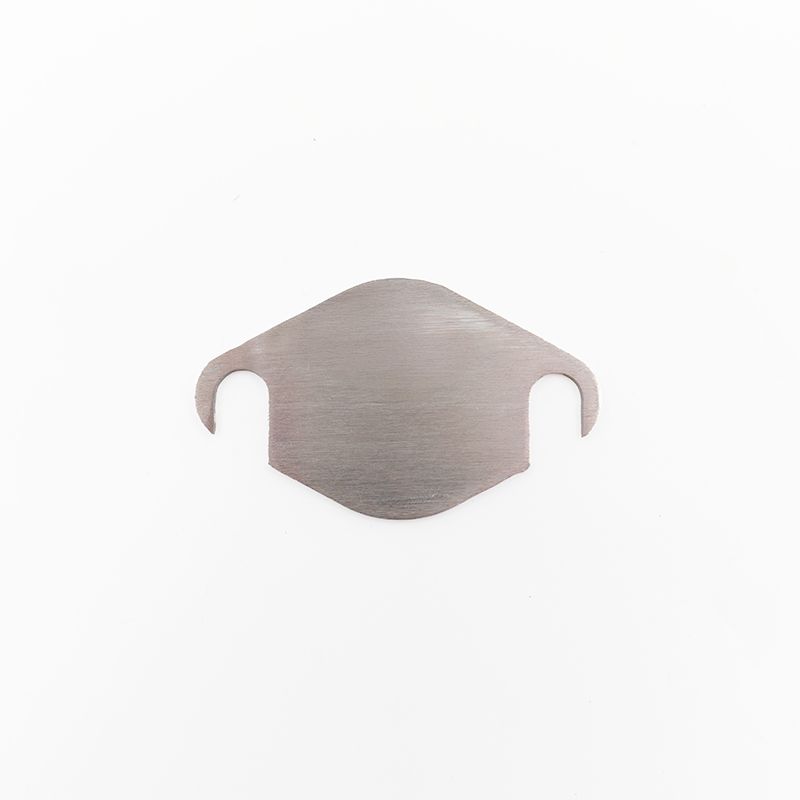

EGR plate for 1.9 JTD / Multijet 8V and 2.4 JTD 10V
This 304 stainless steel plate, laser cut and made in France, fits on the original EGR valve and blocks the recirculated exhaust gas (fully or partially depending on the version chosen). The result: a cleaner air/fuel mixture, less intake fouling, more torque. Stainless steel does not rust or warp with heat.
Which Dynaparts solution should I choose?
- PLATE-01: plate for the 1st-generation pneumatic EGR valve (Fispa 83.727), 1.9 JTD 105 hp and 2.4 JTD 136 hp from 1998 to 2001
- PLATE-05 ✔: solid or drilled plate for the EGR valve of 1.9 JTD / Multijet 8V and 2.4 JTD 10V engines
- PLATE-09: solid or drilled plate for the EGR valve of 1.9 JTDM 16V, 2.4 JTDM 20V, Opel 1.9 CDTI and Saab 1.9 TiD engines
- PLATE-42: physical EGR valve removal on these same 16V / 20V engines: the valve is removed and replaced by plates
- Kit DP-ENG-EGR-FIAT-01: plate and electronic emulator for 16V / 20V engines: no warning light, no remap
To identify your valve, compare the part number engraved on it with the numbers below, or send us a photo.
Solid plate or drilled flange
Solid plate: full blanking. Drilled flange: lets a small gas flow through, reducing the risk of ECU detection.
Warning light
With the solid plate, the ECU may detect the lack of EGR flow, especially on later Multijet engines: the engine warning light may come on. Plan a remap in that case, or choose the drilled flange.
Compatible vehicles
- Alfa Romeo: 145 and 146 1.9 JTD 105 hp, 147 1.9 JTD 101 / 110 / 115 hp and 1.9 JTDM 8V 120 hp, 156 and 156 Sportwagon 1.9 JTD 105 / 110 / 115 hp and 2.4 JTD 136 / 140 / 150 hp, 166 2.4 JTD 136 / 140 / 150 hp
- Fiat: Brava and Bravo I 1.9 JTD 100 / 105 hp, Bravo II 1.9 Multijet 90 / 116 / 120 hp, Doblo 1.9 JTD / Multijet 100 / 105 / 120 hp, Idea 1.9 JTD 101 hp, Marea and Marea Weekend 1.9 JTD 105 / 107 / 110 hp, Multipla 1.9 JTD 105 to 120 hp, Palio Weekend and Strada 1.9 JTD 80 hp, Punto II 1.9 JTD 80 / 86 / 101 hp, Stilo 1.9 JTD 80 / 115 / 116 hp and 1.9 Multijet 100 / 120 hp
- Lancia: Lybra and Lybra SW 1.9 JTD 105 / 110 / 116 hp and 2.4 JTD 135 / 140 / 150 hp, Musa 1.9 Multijet 101 hp, Thesis 2.4 JTD 150 hp
How do I check my valve matches?
This plate fits the electro-pneumatic EGR valve of 8V / 10V engines.
- Valve numbers: Fiat / Alfa Romeo / Lancia 0060816439, 60816439, 46785766, 46530857, 55182482, 55204235, 55204236, 55215029, 55215030, 71723451, 71788561, 71788627, 71788630, 71789048, 71793583, 71793798 – Pierburg 7.22946 – equivalents : Ridex 1145E0019, NRF 48334, Abakus 121-01-001, AKS Dasis 085012N, NTY EGR-AR-002, ESEN SKV 14SKV006
Why block off the EGR valve?
Over the miles, the EGR valve clogs with carbon and ends up sticking: warning light, P0400 / P0401 / P0403 codes, loss of power, flat spots, black smoke. Cleaning often lasts only a few thousand kilometres. Blocking it off gives you back an engine that breathes and low-end torque.
Fitting
The fitting direction is shown on the product photos. Remove the valve, insert the plate, refit to factory torque. Take the opportunity to clean the intake pipe.
Box contents
- 1 plate in 304 stainless steel, laser cut and made in France, solid or drilled version as selected
Reinforced EGR plate gasket (ref. DP-ENG-GASKET-01) and engine silicone tube available as accessories.
Not sure about your engine? Send us a photo of your valve and we will check fitment.
| Materials: | Stainless steel |
| Motorization: | 1.9 JTD (100 hp) |
| Motorization: | Other Motorizations |
| Motorization: | 1.9 Multijet D (115 hp) |
| Motorization: | 1.9 JTD |
| Motorization: | 1.9 JTD (115 hp) |
| Motorization: | 1.9 JTDm (115 hp) |
| Motorization: | 2.4 JTD (136 / 140 hp) |
| Motorization: | 2.4 JTD (150 hp) |
| Motorization: | 1.9 JTD (80 hp) |
| Motorization: | 1.9 TD (100 hp) |
| Motorization: | 1.9 JTD (116 hp) |
| Motorization: | 1.9 JTD (110 hp) |
| Motorization: | 2.4 JTD (140 hp) |
| Make: | ALFA ROMEO |
| Make: | LANCIA |
| Make: | FIAT |
| Model: | Bravo 1 (182) (06/1995 - 03/2002) |
| Model: | Lybra (839) (09/1999 - 12/2006) |
| Model: | Brava (182) (06/1995 - 03/2002) |
| Model: | Scudo (07/1995 - 12/2006) |
| Model: | Marea (185) (07/1996 - 09/2002) |
| Model: | 147 (10/2000 - 09/2004) |
| Model: | Multipla (186) (11/1998 - 05/2010) |
| Model: | 156 Sportwagon (09/1997 - 03/2003) |
| Model: | Punto (188) Phase 2 (07/2003 - 08/2009) |
| Model: | Stilo (09/2001 - 01/2008) |
| Model: | Lybra (839) SW (09/1999 - 12/2006) |
| Model: | Croma II (194-294) (06/2005 - 10/2007) |
| Model: | Thesis (09/2002 - 01/2009) |
| Model: | Marea (185) Week-End (07/1996 - 09/2002) |
| Model: | 156 (09/1997 - 03/2003) |
| Model: | Punto (188) Phase 1 (07/1999 - 06/2003) |
| Product Range : | Engine |
| Engine | EGR and gas recirculation |
Compatible vehicles (77)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| 145 (930) (07/1994 - 01/2001) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| 146 (930) (12/1994 - 10/2001) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| 147 (937) (10/2000 - 03/2010) | 1.9 JTD (101 cv) | diesel | - | 101 hp | - |
| 147 (937) (10/2000 - 03/2010) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| 147 (937) (10/2000 - 03/2010) | 1.9 JTD (115 cv) | diesel | - | 115 hp | - |
| 147 (937) (10/2000 - 03/2010) | 1.9 JTDM 8V (120 cv) | diesel | - | 120 hp | - |
| 156 (932) (09/1997 - 09/2005) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| 156 (932) (09/1997 - 09/2005) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| 156 (932) (09/1997 - 09/2005) | 1.9 JTD (115 cv) | diesel | - | 115 hp | - |
| 156 (932) (09/1997 - 09/2005) | 2.4 JTD (136 cv) | diesel | - | 140 hp | - |
| 156 (932) (09/1997 - 09/2005) | 2.4 JTD (140 cv) | diesel | - | 140 hp | - |
| 156 (932) (09/1997 - 09/2005) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 1.9 JTD (115 cv) | diesel | - | 115 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 2.4 JTD (136 cv) | diesel | - | 136 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 2.4 JTD (140 cv) | diesel | - | 140 hp | - |
| 156 Sportwagon (932) (02/1997 - 05/2006) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
| 166 (936) (09/1998 - 06/2007) | 2.4 JTD (136 cv) | diesel | - | 136 hp | - |
| 166 (936) (09/1998 - 06/2007) | 2.4 JTD (140 cv) | diesel | - | 140 hp | - |
| 166 (936) (09/1998 - 06/2007) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Brava (182) (10/1995 - 12/2002) | 1.9 JTD (100 cv) | diesel | - | 100 hp | - |
| Brava (182) (10/1995 - 12/2002) | 1.9 JTD 105 (105 cv) | diesel | - | 105 hp | - |
| Bravo I (182) (10/1995 - 10/2001) | 1.9 JTD (100 cv) | diesel | - | 100 hp | - |
| Bravo I (182) (10/1995 - 10/2001) | 1.9 JTD 105 (105 cv) | diesel | - | 105 hp | - |
| Bravo II (198) (11/2006 - 12/2016) | 1.9 D Multijet (116 cv) | diesel | - | 116 hp | - |
| Bravo II (198) (11/2006 - 12/2016) | 1.9 D Multijet (120 cv) | diesel | - | 120 hp | - |
| Bravo II (198) (11/2006 - 12/2016) | 1.9 D Multijet (90 cv) | diesel | - | 90 hp | - |
| Doblo Camionnette/Monospace (223) (03/2001 - 01/2010) | 1.9 JTD (100 cv) | diesel | - | 100 hp | - |
| Doblo Camionnette/Monospace (223) (03/2001 - 01/2010) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| Doblo Camionnette/Monospace (223) (03/2001 - 01/2010) | 1.9 JTD Multijet (120 cv) | diesel | - | 120 hp | - |
| Doblo Monospace (119, 223) (03/2001 - 07/2009) | 1.9 D Multijet (120 cv) | diesel | - | 120 hp | - |
| Doblo Monospace (119, 223) (03/2001 - 07/2009) | 1.9 JTD (100 cv) | diesel | - | 100 hp | - |
| Doblo Monospace (119, 223) (03/2001 - 07/2009) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| Idea Monospace (350) (12/2003 - 12/2012) | 1.9 JTD (101 cv) | diesel | - | 101 hp | - |
| Marea (185) (05/1996 - 12/2007) | 1.9 JTD (107 cv) | diesel | - | 107 hp | - |
| Marea (185) (05/1996 - 12/2007) | 1.9 JTD 105 (105 cv) | diesel | - | 105 hp | - |
| Marea (185) (05/1996 - 12/2007) | 1.9 JTD 110 (110 cv) | diesel | - | 110 hp | - |
| Marea Weekend (185) (09/1996 - 12/2007) | 1.9 JTD 105 (105 cv) | diesel | - | 105 hp | - |
| Marea Weekend (185) (09/1996 - 12/2007) | 1.9 JTD 110 (110 cv) | diesel | - | 110 hp | - |
| Multipla (186) (04/1999 - 06/2010) | 1.9 JTD (120 cv) | diesel | - | 120 hp | - |
| Multipla (186) (04/1999 - 06/2010) | 1.9 JTD 105 (105 cv) | diesel | - | 105 hp | - |
| Multipla (186) (04/1999 - 06/2010) | 1.9 JTD 110 (110 cv) | diesel | - | 110 hp | - |
| Multipla (186) (04/1999 - 06/2010) | 1.9 JTD 115 (115 cv) | diesel | - | 115 hp | - |
| Multipla Van (186) (04/1999 - 06/2010) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| Multipla Van (186) (04/1999 - 06/2010) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| Multipla Van (186) (04/1999 - 06/2010) | 1.9 JTD (116 cv) | diesel | - | 116 hp | - |
| Multipla Van (186) (04/1999 - 06/2010) | 1.9 JTD (120 cv) | diesel | - | 120 hp | - |
| Palio Weekend (171, 173, 178, 373, 374) (04/1996 - 01/2012) | 1.9 JTD (80 cv) | diesel | - | 80 hp | - |
| Punto 3/5 Portes (188) (09/1999 - 03/2012) | 1.9 JTD (101 cv) | diesel | - | 101 hp | - |
| Punto 3/5 Portes (188) (09/1999 - 03/2012) | 1.9 JTD (86 cv) | diesel | - | 86 hp | - |
| Punto 3/5 Portes (188) (09/1999 - 03/2012) | 1.9 JTD 80 (80 cv) | diesel | - | 80 hp | - |
| Punto 3/5 Portes (188) (09/1999 - 03/2012) | 1.9 JTD HGT (101 cv) | diesel | - | 101 hp | - |
| Stilo 3/5 Portes (192) (10/2001 - 12/2007) | 1.9 D Multijet (100 cv) | diesel | - | 100 hp | - |
| Stilo 3/5 Portes (192) (10/2001 - 12/2007) | 1.9 D Multijet (120 cv) | diesel | - | 120 hp | - |
| Stilo 3/5 Portes (192) (10/2001 - 12/2007) | 1.9 JTD (115 cv) | diesel | - | 115 hp | - |
| Stilo 3/5 Portes (192) (10/2001 - 12/2007) | 1.9 JTD (80 cv) | diesel | - | 80 hp | - |
| Stilo Multi Wagon (192) (01/2003 - 08/2008) | 1.9 D Multijet (100 cv) | diesel | - | 100 hp | - |
| Stilo Multi Wagon (192) (01/2003 - 08/2008) | 1.9 D Multijet (120 cv) | diesel | - | 120 hp | - |
| Stilo Multi Wagon (192) (01/2003 - 08/2008) | 1.9 JTD (115 cv) | diesel | - | 115 hp | - |
| Stilo Multi Wagon (192) (01/2003 - 08/2008) | 1.9 JTD (80 cv) | diesel | - | 80 hp | - |
| Stilo Van (192) (10/2001 - 08/2008) | 1.9 JTD (116 cv) | diesel | - | 116 hp | - |
| Strada (178, 278) (06/1999 - 08/2012) | 1.9 JTD (80 cv) | diesel | - | 80 hp | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Lybra (839) (07/1999 - 10/2005) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| Lybra (839) (07/1999 - 10/2005) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| Lybra (839) (07/1999 - 10/2005) | 1.9 JTD (116 cv) | diesel | - | 116 hp | - |
| Lybra (839) (07/1999 - 10/2005) | 2.4 JTD (135 cv) | diesel | - | 134 hp | - |
| Lybra (839) (07/1999 - 10/2005) | 2.4 JTD (140 cv) | diesel | - | 140 hp | - |
| Lybra (839) (07/1999 - 10/2005) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 1.9 JTD (105 cv) | diesel | - | 105 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 1.9 JTD (110 cv) | diesel | - | 110 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 1.9 JTD (116 cv) | diesel | - | 116 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 2.4 JTD (135 cv) | diesel | - | 134 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 2.4 JTD (140 cv) | diesel | - | 140 hp | - |
| Lybra SW (839) (07/1999 - 10/2005) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
| Musa (350) (10/2004 - 09/2012) | 1.9 D Multijet (101 cv) | diesel | - | 101 hp | - |
| Thesis (841) (07/2002 - 07/2009) | 2.4 JTD (150 cv) | diesel | - | 150 hp | - |
