EGR blanking plate 1.9 TTiD, 1.6/2.0 JTDM, 2.0 CDTI

Reliable EGR valve delete for JTDM, Multijet and CDTI engines

This stainless steel 304 plate, laser-cut, blocks the flow of exhaust gases recirculated by the EGR valve. Result: a cleaner air/fuel mix, better-breathing intake, more torque, and less carbon build-up in the engine.

Compatible vehicles

Fits the 1.6 JTDM / Multijet, 2.0 JTDM / Multijet / CDTI and 1.9 TTiD diesel engines, fitted notably to:

• Alfa Romeo: 159 and 159 Sportwagon (2.0 JTDM), Brera and Spider (2.0 JTDM 170 hp), Giulietta (1.6 and 2.0 JTDM), MiTo (1.6 JTDM 120 hp)
• Fiat: 500L (1.6), 500X (1.6 and 2.0), Bravo II (1.6 and 2.0), Doblo III, Freemont (2.0), Grande Punto and Punto Evo (1.6 JTDM 120 hp), Sedici (2.0 JTD 135 hp)
• Lancia: Delta III (1.6, 1.9 190 hp and 2.0), Musa (1.6 JTDM)
• Jeep: Renegade 1.6 and 2.0 MultiJet
• Opel: Astra J (hatchback, GTC, Sports Tourer), Cascada, Insignia (hatchback and Sports Tourer), Zafira C Tourer, with 2.0 CDTI from 110 to 195 hp
• Saab: 9-3 1.9 TTiD 180 hp

How do I check that my EGR valve matches?

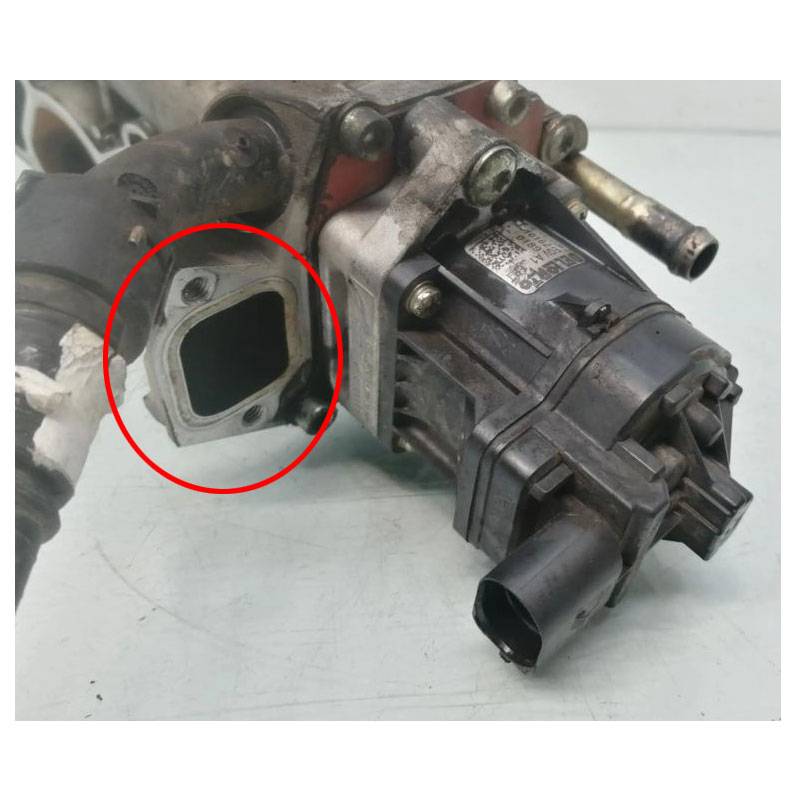

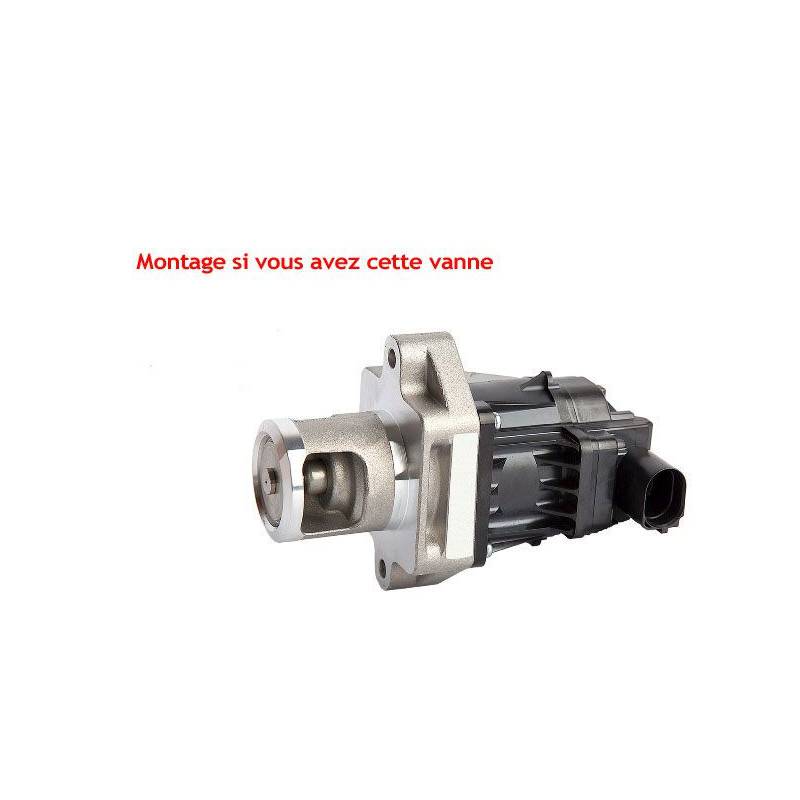

This plate fits an electric EGR valve, high-pressure side, without an integrated EGR cooler. The Fiat Group fitted other valves on its older engines (1.3 JTD, 1.9 JTD 8V, 1.9 JTDM 16V, 2.4 JTD): for those, a dedicated plate exists in our catalogue. Before ordering, compare your valve with our product photos, or send us a photo of your engine by email.

OEM references and EGR valve equivalents

To make sure you order the right plate, compare your EGR valve's reference number with those listed below.

• Fiat / Alfa Romeo / Lancia: 55209609, 55229740, 55265385, 55274455, 6000625574, 71749240, 71752862, 71754796, 71754815, 71777783, 71778231, 71793400, 71793403, 71793641, 71794613, 71794616, 71796001, 71796002
• Jeep / Chrysler: 68101347AA, 68220917AA, 68289085AA, 68294314AA, 68339170AA

This valve is also sold under the equivalent part numbers NTY EGR-AR-003, BorgWarner (Wahler) 710559D, Febi Bilstein 103571, Hella 6NU 014 864-741, NGK 96363, Meat & Doria 88103, Sidat 83.665, Casco CVG74011AS, Delphi EG10496-12B1 and Quinton Hazell XEGR127.

Why block off the EGR valve?

The EGR valve recirculates part of the exhaust gases back into the intake to reduce nitrogen oxide emissions. The downside: it clogs the intake, produces black smoke, and weakens the air/fuel mix. Blocking it off improves engine efficiency and available torque.

Fitting and check engine light

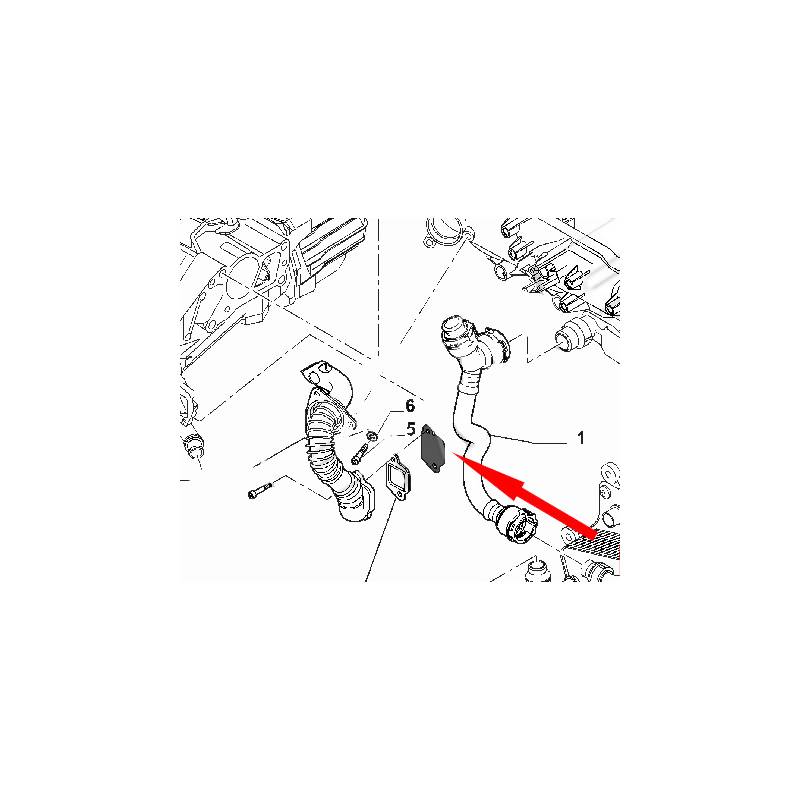

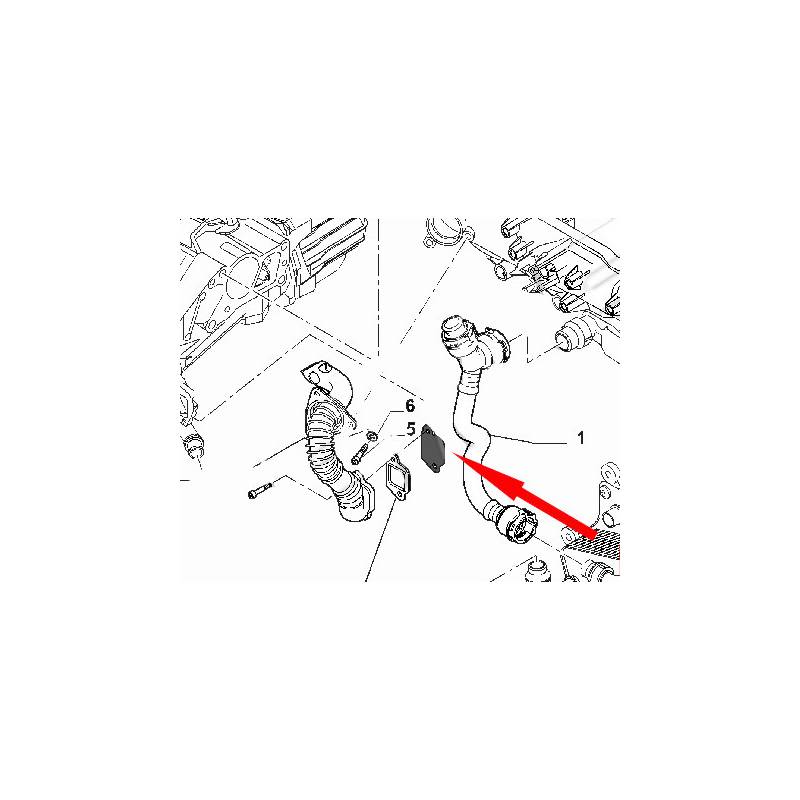

The correct fitting direction is shown directly on the product photos: an arrow or a drawing works as the instructions. On these recent engines, the ECU can detect the absence of EGR flow and trigger a dashboard warning light or limp mode. Two solutions: an electronic intervention to remove the fault, or drilling the plate to make a restrictor that lets a small amount of gas through and limits detection.

What's in the box

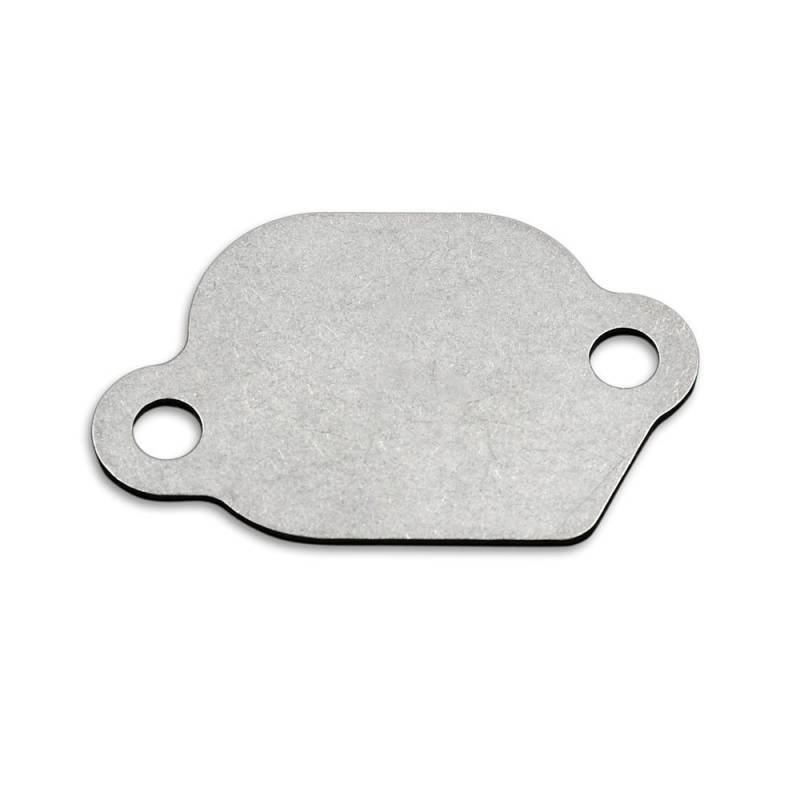

• 1 stainless steel 304 EGR delete plate, laser-cut

Engine-grade silicone sealant available separately as an accessory, to perfect the seal on installation.

Any question or doubt about your engine? Our customer service team replies quickly, just send a photo.
