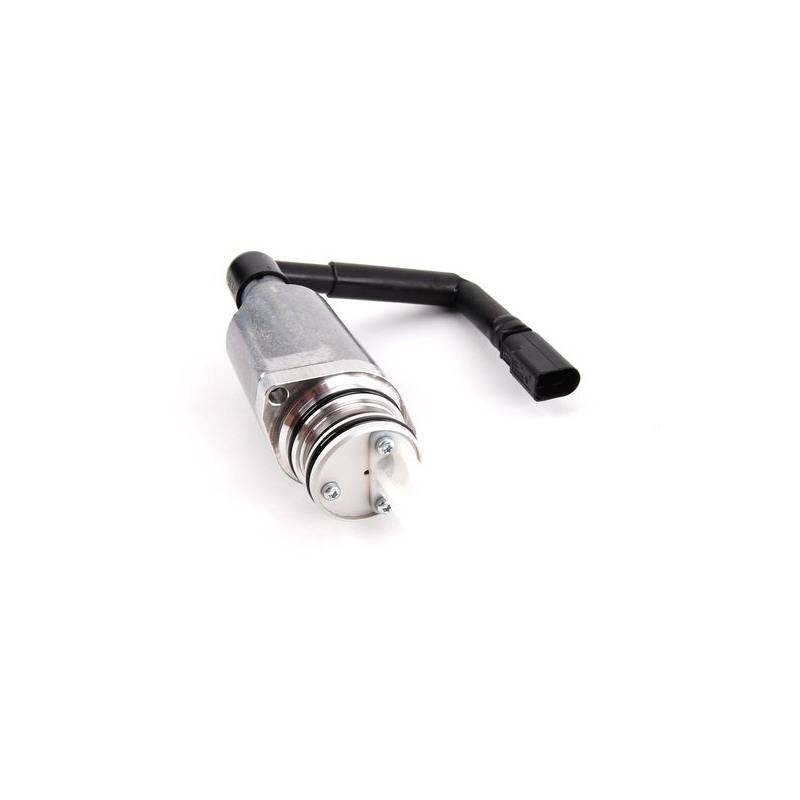

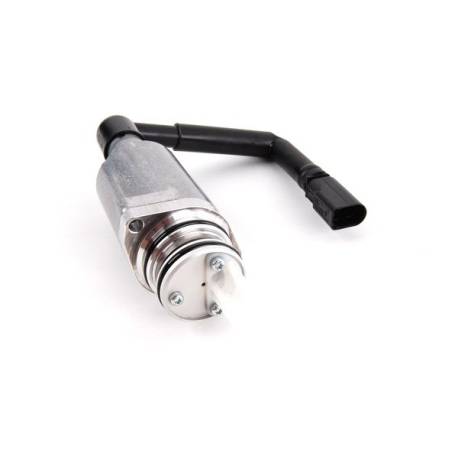

2nd generation Borgwarner rear axle pump 0AV598549A
Preload pump for 2nd generation Borgwarner bridges 0AV598549A
131,76 € tax incl.
146,40 €
-10%
Évaluation:
(0)
2
In stock in our warehouse!
DS118613 - BorgWarner 4x4 Coupling Pump – VAG AWD Systems (VW, Audi, Skoda, Seat)
The BorgWarner DS118613 4-wheel drive coupling pump is an oil pump dedicated to all-wheel drive (AWD / 4Motion / Quattro) systems fitted to many Volkswagen, Audi, Skoda, and Seat models. Located on the rear axle, it supplies and pressurizes the 2nd generation Haldex multi-plate coupling, effectively distributing torque between the front and rear to ensure traction and stability, particularly on wet or snowy roads, or during dynamic driving.
Main Features
- Part Type: 4-wheel drive multi-plate coupling pump / AWD coupling oil pump.
- Position: Mounted on the Haldex module / rear coupler, at the rear differential.
- Quality: OE BorgWarner part, equivalent to original equipment, suitable for the relevant generation of VAG AWD systems.
- Function: Pressurization and lubrication of the multi-disc coupling to engage and modulate torque transmission to the rear axle.
- Direct replacement for the original 4x4 pump, with compatible electrical connectors and mounting points.
- To be used with specific Haldex oil / AWD fluid according to manufacturer recommendations.
Typical Symptoms of a Faulty DS118613 Pump
- Loss of all-wheel drive operation: the vehicle behaves like a front-wheel drive.
- Illumination of ESP / 4x4 / transmission warning lights and presence of fault codes in the Haldex/AWD control unit.
- Abnormal noises, intermittent 4Motion/Quattro system operation, or error messages related to the coupler oil pressure.
Vehicle Compatibility (Main VAG Applications)
The BorgWarner DS118613 pump is used on many VAG Group models equipped with the relevant generation of Haldex all-wheel drive. It is notably common on:
- Volkswagen Golf 5 4Motion / R32 – models equipped with Haldex all-wheel drive.
- Volkswagen Passat B6 4Motion – sedan and estate with multi-disc rear AWD system.
- Volkswagen Touran / Tiguan 4Motion – depending on years and AWD engines.
- Audi A3 8P Quattro – 4x4 gasoline and diesel versions (2.0 TFSI, 2.0 TDI, etc.).
- Audi TT 8J Quattro – 2.0 TFSI and 3.2 V6 engines equipped with Haldex AWD.
- Skoda Octavia II 4x4 – 4-wheel drive estate and sedan.
- Seat Leon / Altea 4x4 – VAG derivatives with Haldex rear coupling.
Exact compatibility depends on the Haldex generation and the OEM reference originally fitted (e.g., 0AV 598 549 / 0AV 598 549 A). It is recommended to verify by VIN or original part number before ordering.
References and Equivalents
- Manufacturer Reference: DS118613 – BorgWarner.
- Type: AWD / Haldex coupling oil pump.
- Typical OEM References: 0AV598549, 0AV598549A (to be confirmed depending on model).
| Filter the type of parts | Transmission: Haldex 2nd generation |
| Motorization: | 1.6 TDI DPF (105 cv) |
| Motorization: | 2.0 16V TFSI (265 cv) |
| Motorization: | 2.0 TDI (170 cv) |
| Motorization: | 2.3 V5 (170 cv) |
| Motorization: | 1.8 TFSI (160 cv) |
| Motorization: | 2.0 TDI 16V (136 cv) |
| Motorization: | 2.0 TFSI (200 cv) |
| Motorization: | 2.8 i VR6 (193 cv) |
| Motorization: | 2.0 (115 cv) |
| Motorization: | 2.0 TFSI (185 cv) |
| Motorization: | 2.5 TDI V6 (150 cv) |
| Motorization: | Other Motorizations |
| Motorization: | 2.0 FSI (150 cv) |
| Motorization: | 2.0 TFSI RS (200 cv) |
| Motorization: | 3.2 V6 (250 cv) |
| Motorization: | 1.9 TDI (130 cv) |
| Motorization: | 2.0 TDI (140 cv) |
| Motorization: | 2.0 TSI FR (210 cv) |
| Motorization: | 1.6 TDI DPF (90 cv) |
| Motorization: | 1.8 TSI (160 cv) |
| Motorization: | 2.0 TDI 16V (140 cv) |
| Motorization: | R32 3.2 VR6 (250 cv) |
| Motorization: | 1.9 TDI (105 cv) |
| Motorization: | 2.0 TDI RS (170 cv) |
| Motorization: | 2.0 TFSI (211 cv) |
| Motorization: | 4.0 V8 4-motion (275 cv) |
| Motorization: | 2.0 16V TDI (140 cv) |
| Motorization: | 2.0 TFSI FR (200 cv) |
| Motorization: | 3.2 ISP (250 cv) |
| Motorization: | 2.0 TFSI FR (211 cv) |
| Motorization: | 2.0 TDI (136 cv) |
| Motorization: | 2.0 TSI Cupra (240 cv) |
| Make: | SEAT |
| Make: | VOLKSWAGEN |
| Make: | AUDI |
| Make: | SKODA |
| Model: | Golf V 4Motion (08/2005 - 11/2008) |
| Model: | Octavia II (1Z) (01/2004 - 06/2013) |
| Model: | Passat B5 Variant 4-Motion (3BG) (10/2000 - 05/2005) |
| Model: | S3 (8P) (10/2006 - 08/2012) |
| Model: | TT Quattro 8J Roadster (08/2006 - 06/2014) |
| Model: | A3 Quattro (8P) Sportback (09/2004 - 03/2013) |
| Model: | Leon II (1P) (07/2005 - 01/2013) |
| Model: | Passat B5 4-Motion (3BG) (10/2000 - 05/2005) |
| Model: | A3 Quattro (8P) (05/2003 - 08/2012) |
| Model: | TT Quattro 8J Coupé (08/2006 - 06/2014) |
| Model: | S3 (8P) Sportback (07/2008 - 03/2013) |
| Product Range : | Transmission |
| Driveline | Preload pumps BOX or bridge |
Véhicules compatibles (68)
AUDI (18) ▼
| Modèle | Motorisation | Carburant | Cylindrée | Puissance | Années |
|---|---|---|---|---|---|
| 80 (81) | 2,0 (115 cv) | - | 2000 cc | 115 cv | 1981-1987 |
| A1 | 2.0 TDI (136 cv) | diesel | 2000 cc | 136 cv | 2010-2018 |
| A3 (8L) | 1.9 TDI (130 cv) | diesel | 1900 cc | 130 cv | 1996-2003 |
| A3 (8P) | 1.6 TDI DPF (105 cv) | diesel | 1600 cc | 105 cv | 2003-2012 |
| A3 (8P) | 1.6 TDI DPF (90 cv) | diesel | 1600 cc | 90 cv | 2003-2012 |
| A3 (8P) | 1.8 TFSI (160 cv) | essence | 1800 cc | 160 cv | 2003-2012 |
| A3 (8P) | 1.9 TDI (105 cv) | diesel | 1900 cc | 105 cv | 2003-2012 |
| A3 (8P) | 2.0 16V TDI (140 cv) | diesel | 2000 cc | 140 cv | 2003-2012 |
| A3 (8P) | 2.0 FSI (150 cv) | essence | 2000 cc | 150 cv | 2003-2012 |
| A3 (8P) | 2.0 TDI (140 cv) | diesel | 2000 cc | 140 cv | 2003-2012 |
| A3 (8P) | 2.0 TDI (170 cv) | diesel | 2000 cc | 170 cv | 2003-2012 |
| A3 (8P) | 2.0 TFSI (200 cv) | essence | 2000 cc | 200 cv | 2003-2012 |
| A3 Quattro (8P) | 3.2 FSI (250 cv) | essence | 3200 cc | 250 cv | 2003-2012 |
| A4 B5 (8D) | 2.5 TDI V6 (150 cv) | diesel | 2500 cc | 150 cv | 1994-2000 |
| A4 B7 (8EC) | 2.0 TDI 16V (140 cv) | diesel | 2000 cc | 140 cv | 2004-2008 |
| A4 B8 (8K2) | 2.0 TFSI (211 cv) | essence | 2000 cc | 211 cv | 2007-2015 |
| S3 (8P) | 2.0 16V TFSI (265 cv) | essence | 2000 cc | 265 cv | 2006-2012 |
| TT Quattro 8J Coupé | 3.2 V6 (250 cv) | - | 3200 cc | 250 cv | 2006-2014 |
SEAT (21) ▼
| Modèle | Motorisation | Carburant | Cylindrée | Puissance | Années |
|---|---|---|---|---|---|
| Alhambra I | Autres Motorisations | - | - | - | 1996-2000 |
| Alhambra II | 2.0 TDI (140 cv) | diesel | 2000 cc | 140 cv | 2000-2010 |
| Alhambra III | 2.0 TDI (136 cv) | diesel | 2000 cc | 136 cv | 2010+ |
| Alhambra III | 2.0 TDI (170 cv) | diesel | 2000 cc | 170 cv | 2010+ |
| Altea | 1.8 TFSI (160 cv) | essence | 1800 cc | 160 cv | 2004-2009 |
| Altea | 1.9 TDI (105 cv) | diesel | 1900 cc | 105 cv | 2004-2009 |
| Altea | 2.0 FSI (150 cv) | essence | 2000 cc | 150 cv | 2004-2009 |
| Altea | 2.0 TDI 16V (140 cv) | diesel | 2000 cc | 140 cv | 2004-2009 |
| Altea | 2.0 TFSI (200 cv) | essence | 2000 cc | 200 cv | 2004-2009 |
| Altea XL Phase 2 | 2.0 TFSI (211 cv) | essence | 2000 cc | 211 cv | 2009+ |
| Cordoba IV | 1.9 TDI (130 cv) | diesel | 1900 cc | 130 cv | 2002-2009 |
| Exeo Berline | 1.8 TSI (160 cv) | essence | 1800 cc | 160 cv | 2008+ |
| Ibiza V (6J) | 2,0 (115 cv) | - | 2000 cc | 115 cv | 2008+ |
| Leon II (1P) | 1.6 TDI DPF (105 cv) | diesel | 1600 cc | 105 cv | 2005-2013 |
| Leon II (1P) | 1.6 TDI DPF (90 cv) | diesel | 1600 cc | 90 cv | 2005-2013 |
| Leon II (1P) | 2.0 TDI 16V (136 cv) | diesel | 2000 cc | 136 cv | 2005-2013 |
| Leon II (1P) | 2.0 TFSI (185 cv) | essence | 2000 cc | 185 cv | 2005-2013 |
| Leon II (1P) | 2.0 TFSI FR (200 cv) | essence | 2000 cc | 200 cv | 2005-2013 |
| Leon II (1P) | 2.0 TFSI FR (211 cv) | essence | 2000 cc | 211 cv | 2005-2013 |
| Leon II (1P) | 2.0 TSI Cupra (240 cv) | essence | 2000 cc | 240 cv | 2005-2013 |
| Leon II (1P) | 2.0 TSI FR (210 cv) | essence | 2000 cc | 210 cv | 2005-2013 |
SKODA (10) ▼
| Modèle | Motorisation | Carburant | Cylindrée | Puissance | Années |
|---|---|---|---|---|---|
| Citigo | Autres Motorisations | - | - | - | 2011+ |
| Fabia II (5J) | 1.9 TDI (105 cv) | diesel | 1900 cc | 105 cv | 2006-2014 |
| Octavia I (1U) | 1.9 TDI (130 cv) | diesel | 1900 cc | 130 cv | 1996-2004 |
| Octavia II (1Z) | 1.8 TFSI (160 cv) | essence | 1800 cc | 160 cv | 2004-2013 |
| Octavia II (1Z) | 2.0 TDI (136 cv) | diesel | 2000 cc | 136 cv | 2004-2013 |
| Octavia II (1Z) | 2.0 TDI (140 cv) | diesel | 2000 cc | 140 cv | 2004-2013 |
| Octavia II (1Z) | 2.0 TDI 16V (140 cv) | diesel | 2000 cc | 140 cv | 2004-2013 |
| Octavia II (1Z) | 2.0 TDI RS (170 cv) | diesel | 2000 cc | 170 cv | 2004-2013 |
| Octavia II (1Z) | 2.0 TFSI RS (200 cv) | essence | 2000 cc | 200 cv | 2004-2013 |
| Superb II (3T) | 2.0 TDI (170 cv) | diesel | 2000 cc | 170 cv | 2008+ |
VOLKSWAGEN (19) ▼
| Modèle | Motorisation | Carburant | Cylindrée | Puissance | Années |
|---|---|---|---|---|---|
| Bora (1J2) | 1.9 TDI (130 cv) | diesel | 1900 cc | 130 cv | 1998-2005 |
| Bora (1J2) | 2,0 (115 cv) | - | 2000 cc | 115 cv | 1998-2005 |
| Bora (1J2) | 2.3 V5 (170 cv) | - | 2300 cc | 170 cv | 1998-2005 |
| Caddy III | 1.9 TDI (105 cv) | diesel | 1900 cc | 105 cv | 2004-2010 |
| Caddy III | 2.0 TDI (140 cv) | diesel | 2000 cc | 140 cv | 2004-2010 |
| Caddy III | 2.0 TDI (170 cv) | diesel | 2000 cc | 170 cv | 2004-2010 |
| Caddy III | 2.0 TDI 16V (140 cv) | diesel | 2000 cc | 140 cv | 2004-2010 |
| Eos | 2.0 FSI (150 cv) | essence | 2000 cc | 150 cv | 2006+ |
| Golf V | 2.0 TDI (136 cv) | diesel | 2000 cc | 136 cv | 2003-2008 |
| Golf V 4Motion | R32 3.2 VR6 (250 cv) | - | 3200 cc | 250 cv | 2005-2008 |
| Golf VI | 1.8 TSI (160 cv) | essence | 1800 cc | 160 cv | 2008-2012 |
| Jetta V (1K) | 2.0 16V TDI (140 cv) | diesel | 2000 cc | 140 cv | 2005-2010 |
| Jetta V (1K) | 2.0 TFSI (200 cv) | essence | 2000 cc | 200 cv | 2005-2010 |
| Passat B4 (3B) | 2.5 TDI V6 (150 cv) | diesel | 2500 cc | 150 cv | 1996-2000 |
| Passat B4 (3B) | 2.8 i VR6 (193 cv) | essence | 2800 cc | 193 cv | 1996-2000 |
| Passat B5 4-Motion (3BG) | 4.0 V8 4-motion (275 cv) | - | 4000 cc | 275 cv | 2000-2005 |
| Passat B6 4-Motion (3C) | 3.2 FSI (250 cv) | essence | 3200 cc | 250 cv | 2005-2010 |
| Passat B6 Berline (3C) | 1.6 TDI DPF (105 cv) | diesel | 1600 cc | 105 cv | 2005-2010 |
| Tiguan II | 2.0 TFSI (211 cv) | essence | 2000 cc | 211 cv | 2011+ |
