EGR blanking plate for TOYOTA D-4D
304 stainless steel EGR blanking plate for Toyota 2.0 D-4D (Avensis T25, Corolla E12, Corolla Verso, RAV4 II). Easy fitting, warning light possible on later models.
17,48 € tax incl.
- Order today
- Shipping from our warehouse
- Delivery Fri 20 Nov
EGR valve blanking plate for Toyota 2.0 D-4D

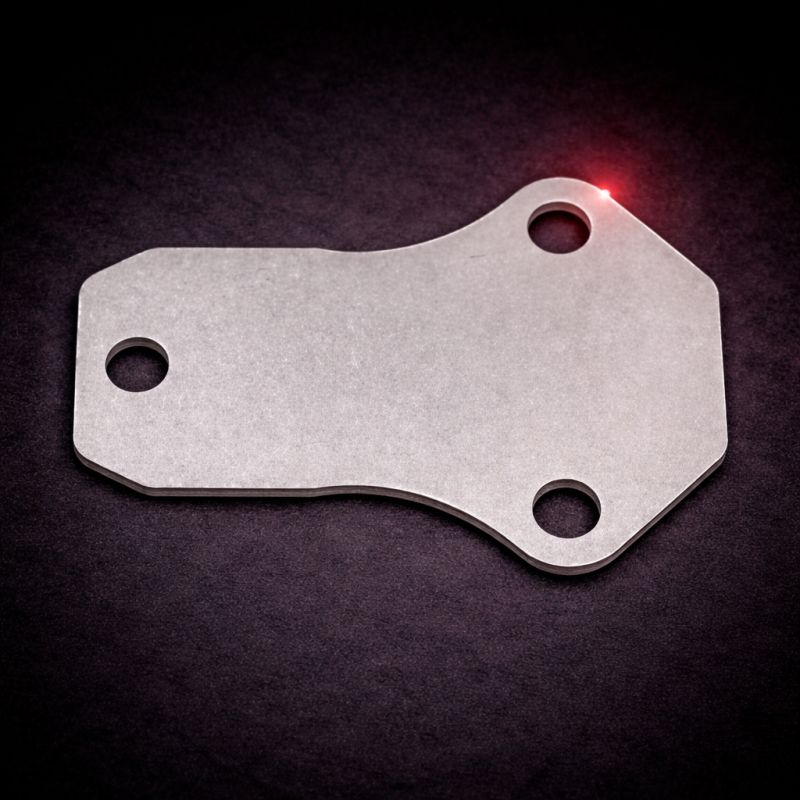

This laser-cut 304 stainless steel Dynaparts plate blocks the exhaust gas recirculated by the EGR valve on Toyota 2.0 D-4D engines (1CD-FTV). The result: a cleaner air/fuel mixture, better intake breathing, more torque and less carbon build-up. Stainless steel does not rust or warp with heat, so the plate stays sealed over time.
Warning light: what you need to know
On later engines (usually from 2004), the ECU may detect the lack of EGR flow: the engine warning light may come on and the engine may enter limp mode. In that case, plan a remap disabling the EGR function. The plate can also be drilled to let a small gas flow through, which reduces the risk of detection.
Compatible vehicles (2.0 D-4D)
- Avensis II (T25): 2.0 D-4D 116 hp, saloon, 3/5-door and estate (2003 to 2008)
- Corolla IX (E12): 2.0 D-4D 90, 110 and 116 hp, 3/5-door, saloon and estate (2001 to 2007)
- Corolla Verso (E12): 2.0 D-4D 90 hp (2001 to 2004)
- Corolla Verso (R1): 2.0 D-4D 116 hp (2004 to 2009)
- RAV4 II (A2): 2.0 D-4D 4WD 116 hp (2001 to 2005)
Not covered: Avensis T27, Corolla E15, RAV4 III and IV, 2.2 D-4D versions (another Dynaparts plate exists for the Euro 4 2.0 / 2.2 D-4D).
How do I check my EGR valve matches?
Compare the part number engraved on your valve with the numbers below. If in doubt, email us a photo of your engine: we will check fitment.
- Toyota: 25620-27090
- Denso: VN150100-8110, DEG-0101
Why block off the EGR valve?
The EGR valve feeds part of the exhaust gas back into the intake to reduce nitrogen oxides. On the 2.0 D-4D it clogs with carbon, especially in town driving: warning light, loss of power, hesitation, black smoke, blocked intake. Blocking it off improves engine efficiency and available torque.
Fitting

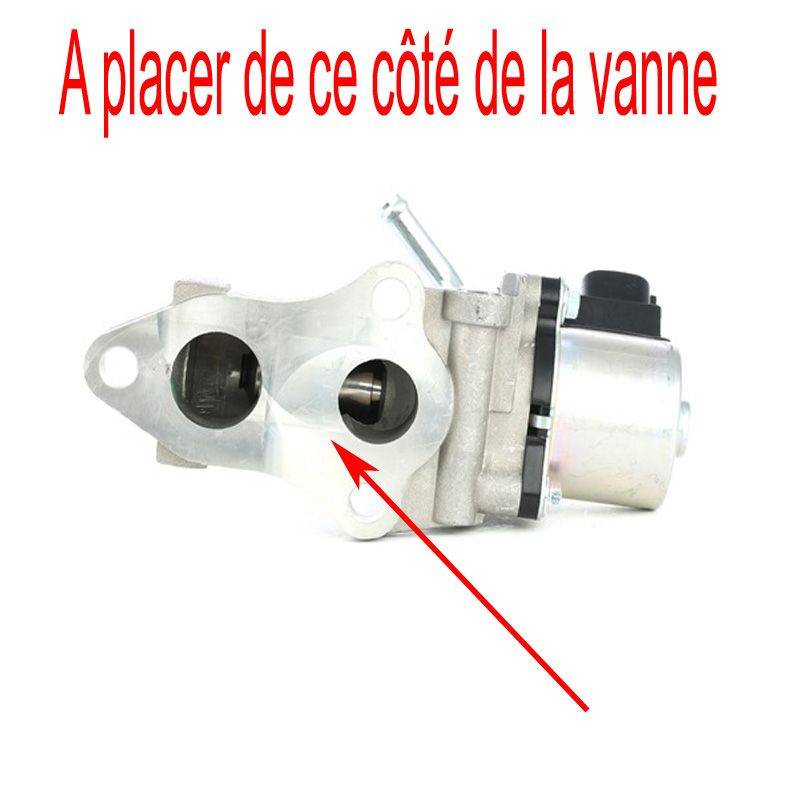

The fitting direction is shown on the product photos: an arrow or drawing acts as instructions. Remove the valve, insert the plate, refit to factory torque. Take the opportunity to clean the intake pipe.
Box contents
- 1 EGR blanking plate in laser-cut 304 stainless steel
EGR valve gasket (Toyota ref. 25628-27010) not included. Engine silicone tube available separately as an accessory, for a perfect seal.
Any questions or doubts about your engine? Our customer service replies quickly, photo in hand.
| Motorization: | 2.0 D-4D (116 hp) |
| Motorization: | Other Motorizations |
| Make: | TOYOTA |
| Model: | RAV4 II (05/2000 - 11/2005) |
| Model: | Avensis (T25) (01/2003 - 11/2008) |
| Model: | Corolla (120) (11/2001 - 02/2007) |
| Product Range : | Engine |
| Engine | EGR and gas recirculation |
Compatible vehicles (13)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Avensis (T25) (01/2003 - 11/2008) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Avensis 3/5 Portes (T25) (03/2003 - 11/2008) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Avensis Break (T25) (04/2003 - 11/2008) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Corolla (E12) (08/2000 - 03/2008) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Corolla (E12) (08/2000 - 03/2008) | 2.0 D-4D (90 cv) | diesel | - | 90 hp | - |
| Corolla 3/5 Portes (E12) (01/2001 - 12/2007) | 2.0 D-4D (110 cv) | diesel | - | 110 hp | - |
| Corolla 3/5 Portes (E12) (01/2001 - 12/2007) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Corolla 3/5 Portes (E12) (01/2001 - 12/2007) | 2.0 D-4D (90 cv) | diesel | - | 90 hp | - |
| Corolla Break (E12) (03/2001 - 12/2007) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| Corolla Break (E12) (03/2001 - 12/2007) | 2.0 D-4D (90 cv) | diesel | - | 90 hp | - |
| Corolla Verso (E12) (08/2001 - 05/2004) | 2.0 D-4D (90 cv) | diesel | - | 90 hp | - |
| Corolla Verso (R1, ZER, ZZE12) (03/2004 - 03/2009) | 2.0 D-4D (116 cv) | diesel | - | 116 hp | - |
| RAV4 II (A2) (05/2000 - 11/2005) | 2.0 D 4WD (116 cv) | diesel | - | 116 hp | - |
