Oil cooler kit Racingline MQB type Golf 7 GTI/R, S3 8V, Leon 5F VWR18G700
Oil cooler kit for MQB platforms type Golf 7/8 GTI/R, S3 8V/8Y, Leon 5F/4 cupra R or Octavia RS
648,65 € tax incl.
720,72 €
-10%
- Order today
- Preparation at the manufacturer
- Delivery Wed 2 Dec
Oil cooler kitRacinglineperfectly fits all carsMQBequipped with a 2.0 engineTSIEA888.3 and EA888.4 at high power levels.
Why install an oil cooler kit?
Oil cooling kit Racingline, very expected, fits perfectly to all powerful MQB 2.0 TSI cars, operating at high power or in hot climates. It is a complete package ready to install, using a smart sandwich plate design for a simple and reliable installation.
In fact, adding power to these TSI engines generates more heat, which is necessarily harder to eliminate. A significant increase in oil temperature means only one thing: a decrease in your engine's ability to stay properly lubricated. At the same time, it is very important not to cool the oil too much; This is where the kit comes in Racingline.
In high-speed driving, the serial oil cooler is easily exceeded. The failures begin to feel when the oil cannot dissipate the heat collected fairly quickly and it begins to lose its fluidity and to deteriorate, thus losing its lubrication properties.
- The kit Racingline solves this problem: by adding an additional air duct to the oil cooler located in the airflow at the front of the car, oil temperatures are reduced by about 15 to 20 degrees °C (on average)
- The kit is mounted on the original intercooler and is added to the forward mounted intercooler, which doubles the cooling capacity of the engine by reducing heat transfer in the water system.
- When the oil moves away from heat inside the engine, its temperature drops significantly as it is pumped through very compact fins of the 10-row cooler mounted directly into the cold air stream.
- The kit is provided with a complete accessory pouch for a simple and fast installation
Installation of oil cooler kit
As you doubt, the oil cooler Racingline is a kit for EA888 gen3.
The system is designed for simple adjustment and ultimate reliability. All necessary for mounting is included in the kit.
Unlike some oil cooler kits, it is not necessary to remove the intake manifold to access oil galleries with the kit Racingline. This allows you to keep an engine input and output power at any time.
The intelligent oil filter adapter allows to install the oil cooler sandwich plate under the current oil filter location on all EA888.3 engines, which is enough to remove it to replace it.
This sandwich plate includes an integrated discharge valve system to protect the system from pressure points.
The 10-row oil cooler works to achieve a maximum heat decrease without excessive load loss.
The power and return hardened in nylon, stainless steel of the 210 series, pass beyond the chassis leg in the bumper cavity, and then connect directly to the oil cooler.

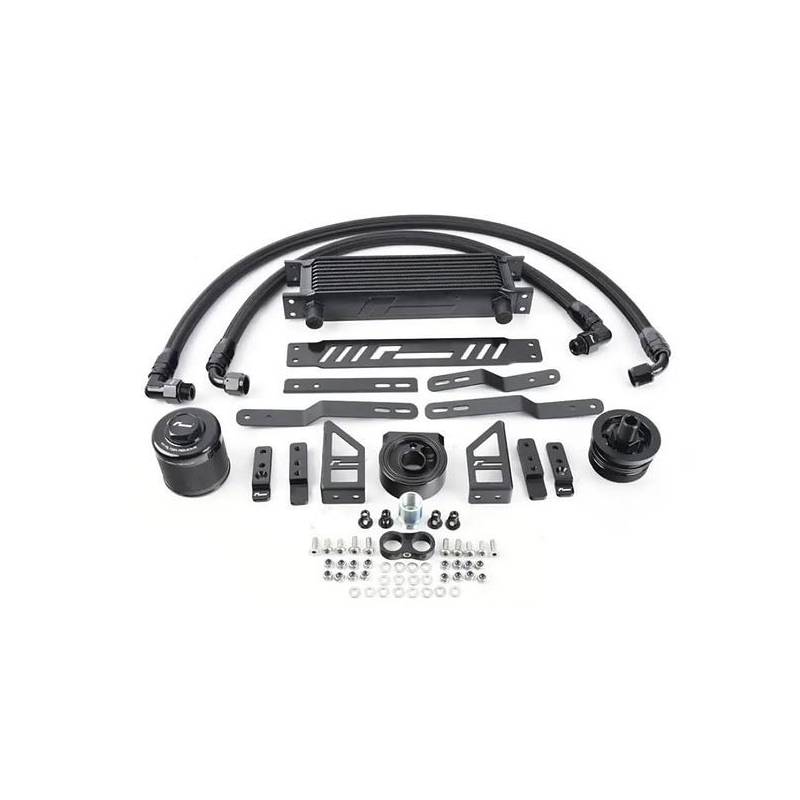

Inside the kit...
- Oil cooler fixing brackets (two games)
- Power and return hardened in nylon, AN10 210 series.
- Round-trip sandwich plate CNC.
- Assembly kit containing all the nuts, bolts, washers and rubber mounting coils required.
- Oil cooler AN10 to 10 rows.
- Used alu filter box with removable recessed filter.
Engineer precision for perfect performance...

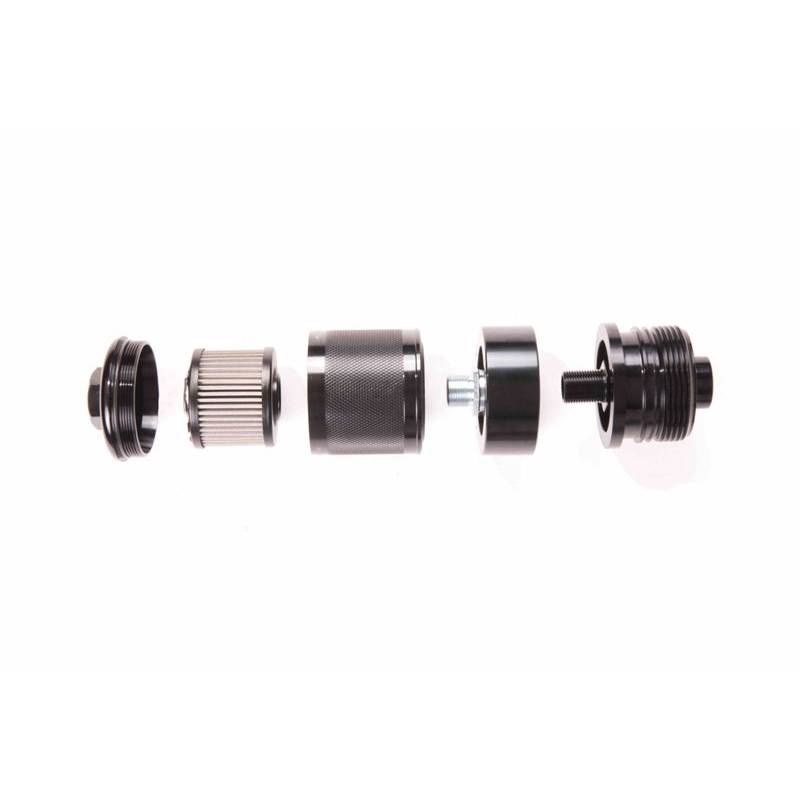

- Left threaded oil filter body for easy (and clean) drains
- The high-speed micronic filter in stainless steel included in each kit
- High quality CNC T6 6061 aluminum used for precise adjustment
- Anodized shiny bill for sustainable protection and beautiful appearance
- The adaptation plate is placed under the oil filter with a pressure control valve to divert the oil flow around the new cooling system
Compatibility:
- VW Golf 7 GTI 2013+ 5G
- VW Golf 7 R 2013+ 5G
- VW Golf 7 GTI ClubSport 2016+ 5G
- VW Jetta GLI 2019+A7
- VW Tiguan 2.0 TSI 2016+
- VW T-Roc R 2.0 TSI 2018+
- VW Passat 2.0 TSI B8 2015+ 3G
- VW Arteon 2.0 TSI 2017+
- VW Golf 8 GTI 2020+
- VW Golf 8 GTI Clubsport 2020+
- VW Golf 8 R 2020+
- VW Arteon R 2.0 TSI 2021+
- VW T-Roc R 2.0 TSI 2021+
- VW Tiguan R II 2.0 TSI 2021+
- Audi S3 2013+ 8V
- Audi TT 2.0 TSI III 2014+ 8S
- Audi TTS III 2015+ 8S
- Audi S3 8Y 2020+
- Audi A3 2.0 TSI 8Y 2020+
- Audi TT 2.0 TSI 8S 245PS 2021+
- SEAT Leon Cupra III 2014+ 5F
- Skoda Octavia vRS III 2014+ 5E
- Skoda Superb 1.8 / 2.0 TSI 2015+ B8 3V
- Skoda Octavia IV vRS 2.0 TSI 245ps NX 2020+
- Cupra Leon IV FW 2020+
- Cupra Ateca 2021+
- Cupra Formentor 2020+
| Product Range : | Engine |
| Engine | Oil engine heater kit |
Compatible vehicles (75)
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | 2.0 TFSI (220 cv) | essence | - | 220 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 3/5 Portes (8V1, 8VK) (04/2012 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 Décapotable (8V7, 8VE) (10/2013 - 10/2020) | 2.0 TFSI quattro (220 cv) | essence | - | 220 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 Limousine (8VM, 8VS) (05/2013 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Limousine (8YM, 8YS) (04/2020 - Aujourd'hui) | S3 TFSI quattro (310 cv) | essence | - | 310 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 1.8 TFSI (170 cv) | essence | - | 170 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 1.8 TFSI (180 cv) | essence | - | 179 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | 2.0 45 TFSI (220 cv) | essence | - | 220 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | S3 quattro (300 cv) | essence | - | 300 hp | - |
| A3 Sportback (8VA, 8VF) (09/2012 - 10/2020) | S3 quattro (310 cv) | essence | - | 310 hp | - |
| A3 Sportback (8YA, 8YF) (11/2019 - Aujourd'hui) | S3 TFSI quattro (310 cv) | essence | - | 310 hp | - |
| Q2 (GAB, GAG) (06/2016 - Aujourd'hui) | SQ2 TFSI quattro (300 cv) | essence | - | 300 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TFSI (230 cv) | essence | - | 230 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TFSI quattro (230 cv) | essence | - | 230 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | 2.0 TTS quattro (310 cv) | essence | - | 310 hp | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | Autres Motorisations | - | - | - | - |
| TT Coupé (FV3, FVP) (07/2014 - Aujourd'hui) | Autres Motorisations quattro | - | - | - | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TFSI (230 cv) | essence | - | 230 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TFSI quattro (230 cv) | essence | - | 230 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | 2.0 TTS TFSI quattro (310 cv) | essence | - | 310 hp | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | Autres Motorisations | - | - | - | - |
| TT Roadster (FV9, FVR) (11/2014 - Aujourd'hui) | Autres Motorisations quattro | - | - | - | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Formentor (KM7, KMP) (07/2020 - Aujourd'hui) | 2.0 TSI 4Drive (310 cv) | essence | - | 310 hp | - |
| Leon 3/5 Portes (KL1, KU1, KUG) (09/2020 - Aujourd'hui) | 2.0 TSI VZ (300 cv) | essence | - | 300 hp | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Leon III 3/5 Portes (5F1) (09/2012 - 08/2020) | 1.8 TSI (180 cv) | essence | - | 180 hp | - |
| Leon III 3/5 Portes (5F1) (09/2012 - 08/2020) | 2.0 Cupra (280 cv) | essence | - | 280 hp | - |
| Leon III 3/5 Portes (5F1) (09/2012 - 08/2020) | 2.0 Cupra (290 cv) | essence | - | 290 hp | - |
| Leon III 3/5 Portes (5F1) (09/2012 - 08/2020) | 2.0 Cupra (300 cv) | essence | - | 300 hp | - |
| Leon III 3/5 Portes (5F1) (09/2012 - 08/2020) | 2.0 Cupra R (310 cv) | essence | - | 310 hp | - |
| Leon III ST (5F8) (09/2012 - 08/2020) | 2.0 Cupra (280 cv) | essence | - | 280 hp | - |
| Leon III ST (5F8) (09/2012 - 08/2020) | 2.0 Cupra (290 cv) | essence | - | 290 hp | - |
| Leon III ST (5F8) (09/2012 - 08/2020) | 2.0 Cupra (300 cv) | essence | - | 300 hp | - |
| Leon III ST (5F8) (09/2012 - 08/2020) | 2.0 Cupra 4Drive (300 cv) | essence | - | 300 hp | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Octavia III 3/5 Portes (5E3, NL3, NR3) (11/2012 - 10/2020) | 1.8 TSI (180 cv) | essence | - | 180 hp | - |
| Octavia III 3/5 Portes (5E3, NL3, NR3) (11/2012 - 10/2020) | 2.0 TSI RS (220 cv) | essence | - | 220 hp | - |
| Octavia III 3/5 Portes (5E3, NL3, NR3) (11/2012 - 10/2020) | 2.0 TSI RS (230 cv) | essence | - | 230 hp | - |
| Octavia III Combi (5E5, 5E6) (11/2012 - 10/2020) | 1.8 TSI (180 cv) | essence | - | 179 hp | - |
| Octavia III Combi (5E5, 5E6) (11/2012 - 10/2020) | 2.0 TSI RS (200 cv) | essence | - | 200 hp | - |
| Octavia III Combi (5E5, 5E6) (11/2012 - 10/2020) | 2.0 TSI RS (220 cv) | essence | - | 220 hp | - |
| Octavia III Combi (5E5, 5E6) (11/2012 - 10/2020) | 2.0 TSI RS (230 cv) | essence | - | 230 hp | - |
| Octavia IV 3/5 Portes (NN3, NX3, PV3) (01/2020 - Aujourd'hui) | 2.0 TSI RS (245 cv) | essence | - | 245 hp | - |
| Octavia IV Combi (NX5, PV5) (11/2019 - Aujourd'hui) | 2.0 TSI RS (245 cv) | essence | - | 245 hp | - |
| Superb III 3/5 Portes (3V3) (03/2015 - 06/2024) | Toutes Motorisations | - | - | - | - |
| Superb III Break (3V5) (03/2015 - 06/2024) | Toutes Motorisations | - | - | - | - |
| Model | Engine | Fuel | Displacement | Power | Years |
|---|---|---|---|---|---|
| Arteon 3/5 Portes (3H7, 3H8) (03/2017 - Aujourd'hui) | 2.0 TSI (190 cv) | essence | - | 190 hp | - |
| Arteon 3/5 Portes (3H7, 3H8) (03/2017 - Aujourd'hui) | 2.0 TSI 4motion (280 cv) | essence | - | 280 hp | - |
| Arteon 3/5 Portes (3H7, 3H8) (03/2017 - Aujourd'hui) | Autres Motorisations | - | - | - | - |
| Beetle 3/5 Portes (5C1, 5C2) (04/2011 - 07/2019) | 2.0 TFSI (200 cv) | essence | - | 200 hp | - |
| Beetle Décapotable (5C7, 5C8) (12/2011 - 07/2019) | 2.0 TFSI (200 cv) | essence | - | 200 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (220 cv) | essence | - | 220 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (230 cv) | essence | - | 230 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 GTI (245 cv) | essence | - | 245 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (280 cv) | essence | - | 280 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (300 cv) | essence | - | 300 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (300 cv) FAP Facelift | essence | - | 300 hp | - |
| Golf VII 3/5 Portes (5G1, BE1, BE2, BQ1) (08/2012 - 03/2021) | 2.0 R 4motion (310 cv) | essence | - | 310 hp | - |
| Golf VIII 3/5 Portes (CD1, DA1) (07/2019 - Aujourd'hui) | 2.0 GTI (245 cv) | essence | - | 245 hp | - |
| Golf VIII 3/5 Portes (CD1, DA1) (07/2019 - Aujourd'hui) | 2.0 GTI Clubsport (300 cv) | essence | - | 300 hp | - |
| Golf VIII 3/5 Portes (CD1, DA1) (07/2019 - Aujourd'hui) | 2.0 TSI R 4motion (320 cv) | essence | - | 320 hp | - |
| Jetta IV (162, 163, AV2, AV3) (04/2010 - 04/2018) | 2.0 TFSI (200 cv) | essence | - | 200 hp | - |
| Jetta VII (BU3, BU4, BU5) (12/2017 - Aujourd'hui) | 2.0 GLI (231 cv) | essence | - | 231 hp | - |
| Jetta VII (BU3, BU4, BU5) (12/2017 - Aujourd'hui) | 350 TSI (230 cv) | essence | - | 230 hp | - |
| Passat B8 (3G2, CB2) (08/2014 - 03/2024) | Autres Motorisations | - | - | - | - |
| Passat B8 (3G2, CB2) (08/2014 - 03/2024) | Autres Motorisations 4-motion | - | - | - | - |
| Passat B8 Variant (3G5, CB5) (08/2014 - 03/2024) | Autres Motorisations | - | - | - | - |
| Passat B8 Variant (3G5, CB5) (08/2014 - 03/2024) | Autres Motorisations 4-motion | - | - | - | - |
| T-Roc SUV (A11, D11) (07/2017 - Aujourd'hui) | 2.0 R 4motion (300 cv) | essence | - | 300 hp | - |
| T-Roc SUV (A11, D11) (07/2017 - Aujourd'hui) | 2.0 TSI 4motion (190 cv) | essence | - | 190 hp | - |
| Tiguan I SUV (5N) (09/2007 - 07/2018) | 2.0 TSI 4motion (180 cv) | essence | - | 180 hp | - |
